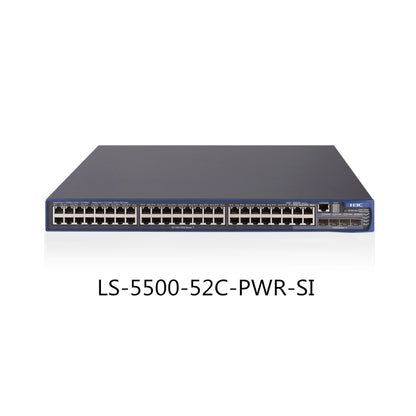

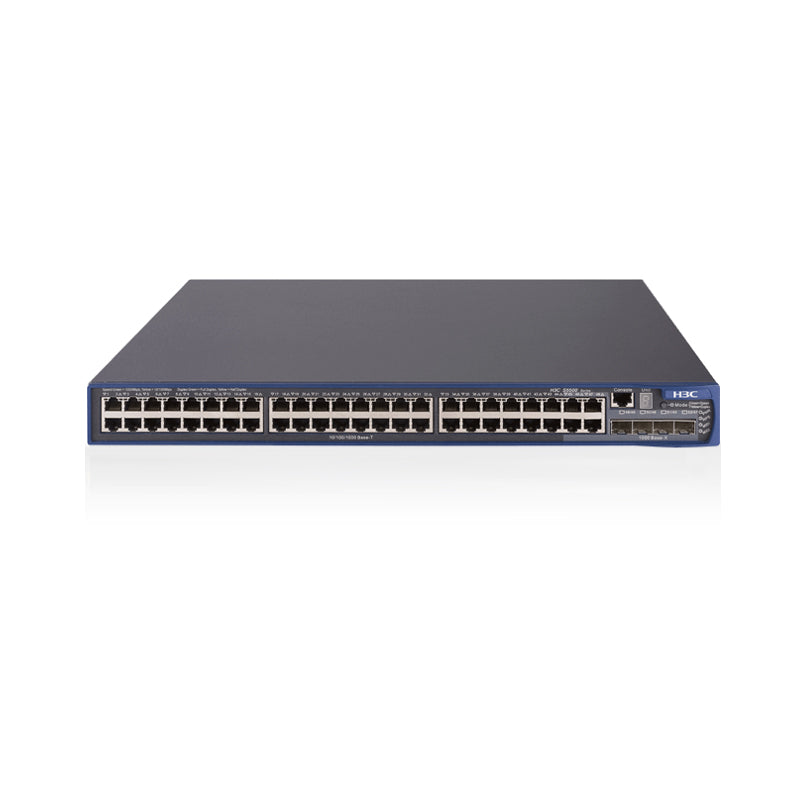

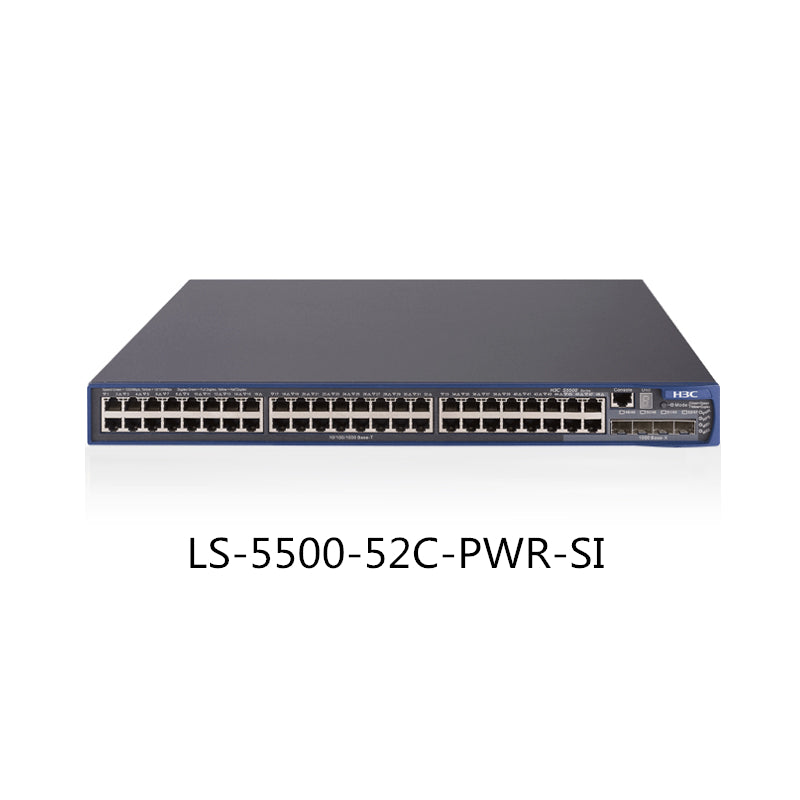

H3C S5500-52C-PWR-SI Ethernet Switch 48-port Full Gigabit Layer 3 Enterprise Network Management POE Switch

SKU LS-5500-52C-PWR-SI

Quick Details:

Products Status:Stock

Ports:≥ 48

Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex


Switch Capacity:240Gbps

Brand Name:H3C

Model Number:LS-5500-52C-PWR-SI

Place of Origin:Guangdong, China


Dimensions (W x D x H):440*420*43.6

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

Supporting features
Machine exchange capacity
Switching capacity (full duplex)
Packet forwarding rate (whole machine)
Dimensions (length × width × height) (unit: mm)
440×420 ×43.6
440×360 ×43.6
Management port
1 Console port
Service port description
24 10/100
/ 1000 Base-T Ethernet port
4 multiplexed 1000Base-X Gigabit SFP ports
48 10/100
/ 1000M Base-T Ethernet port
4 multiplexed 1000Base-X Gigabit SFP ports
12 1000Base-X Gigabit SFP ports
8 10/100
/ 1000Base-T Ethernet port

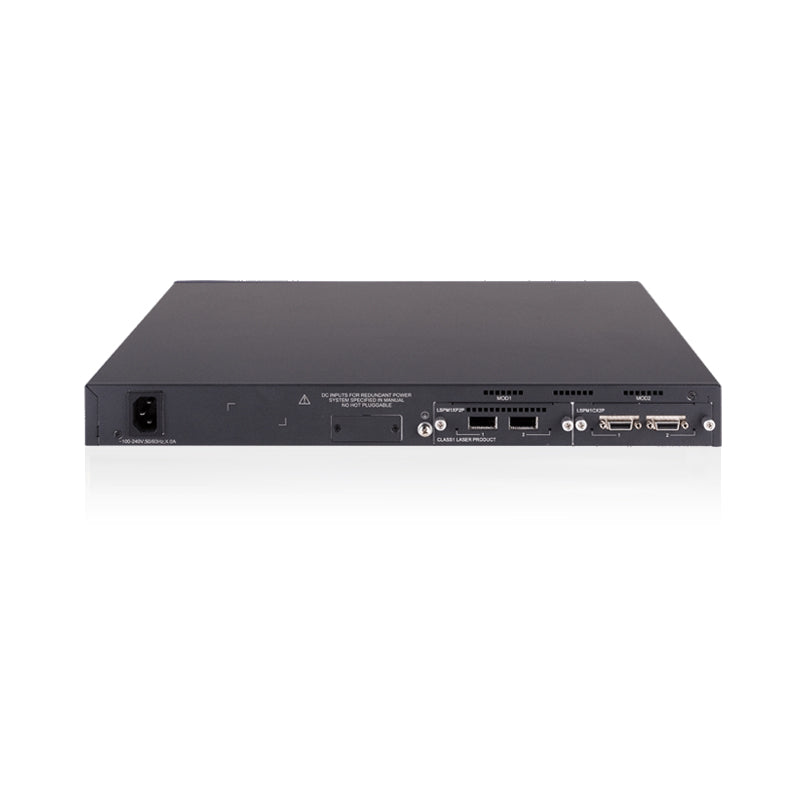

Expansion slot
2 expansion slots
not support
Optional interface module
Single-port 10GE XFP interface module
Two-port 10GE XFP interface module
Two-port 10GE CX4 interface module
Two-port GE SFP interface module
Two-port 10GE SFP + interface module
not support
Power over Ethernet PoE +
not support
Port aggregation
Support LACP
Support manual aggregation
Supports up to 12/24 aggregation groups, each group supports up to 8 GE or 2 10GE ports (10GE models)
Port characteristics
Support IEEE802.3x flow control (full duplex)
Support storm suppression based on port rate percentage
Support PPS-based storm suppression
MAC address
Support black hole MAC
Support setting the maximum number of port MAC address learning
Support IRF2 Intelligent Flexible Architecture (S5500C-SI)
Supports stacking via standard 10 Gigabit Ethernet interfaces
Support local stacking and remote stacking
Support IRF LITE stacking technology
Support port-based VLAN (4K)
Support MAC-based VLAN
Protocol-based VLAN
Support QinQ, selective QinQ
Support VLAN Mapping
Support Voice VLAN
Support GVRP
Support DHCP Client
Support DHCP Snooping
Support DHCP Relay
Supports DHCP Snooping option82 / DHCP Snooping option82
IP routing
Support static routing
Support RIP / RIPng
Support IGMP Snooping / MLD Snooping
Supports multicast VLAN
Support unknown multicast drop
Layer 2 ring network protocol
Support STP / RSTP / MSTP
Support Smart Link
Support RRPP
Support N: 4 port mirroring
Supports flow mirroring
Supports L2 (Layer 2) ~ L4 (Layer 4) packet filtering functions, and provides traffic classification based on source MAC address,
destination MAC address, source IP address, destination IP address, TCP / UDP port, protocol type, and VLAN
Support Time Range ACL
Support VLAN-based ACL
Supports limiting the rate at which a port receives and sends packets
Support message redirection
Support CAR (Committed Access Rate) function
Supports 8 output queues per port
Support port queue scheduling (SP, WRR, SP + WRR)
Supports 802.1p and DSCP priority remarking of packets
Safety features
Support user hierarchical management and password protection
Support 802.1X authentication / centralized MAC address authentication / web authentication
Support Triple Authentication
Guest VLAN support
Support RADIUS authentication
Supports SSH 2.0
Support port isolation
Support port security
Support EAD
Management and maintenance
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration
Support SNMPv1 / v2 / v3, WEB network management
Support RMON (Remote Monitoring) alarm, event, history
Support iMC Intelligent Management Center
Support system log, hierarchical alarm, and debugging information output
Support HGMPv2
Support NTP
Support power alarm function, fan, temperature alarm
Support Ping, Tracert
Support VCT (Virtual Cable Test) cable detection function
Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol
Support Loopback-detection port loopback detection
Input voltage
Rated voltage range: 100V ~ 240V AC, 50 / 60Hz
Maximum voltage range: 90V ~ 264V AC, 47 / 63Hz
Rated voltage range:
-52V ~ -55V DC (for RPS only)
not support
Power consumption (at full load)
455W, of which system power consumption is 85W, POE external power supply power is 370W
When not connected to RPS, the full load power consumption is 500W, of which the system power consumption is 130W, and the POE
external power supply power is 370W;
When RPS is connected, the full load function is 870W, of which the system power consumption is 130W, and the POE external power
supply is 740W.
Working temperature
Relative humidity in the working environment (non-condensing)
