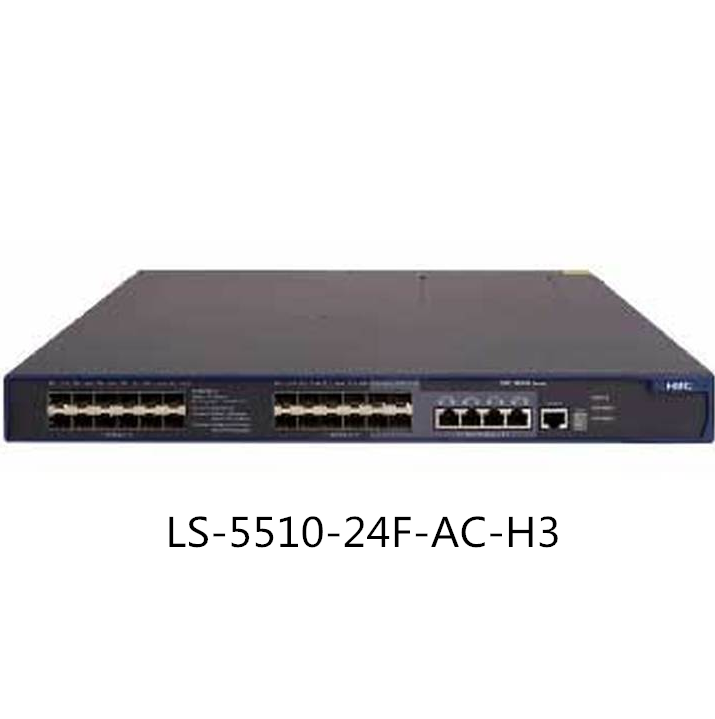

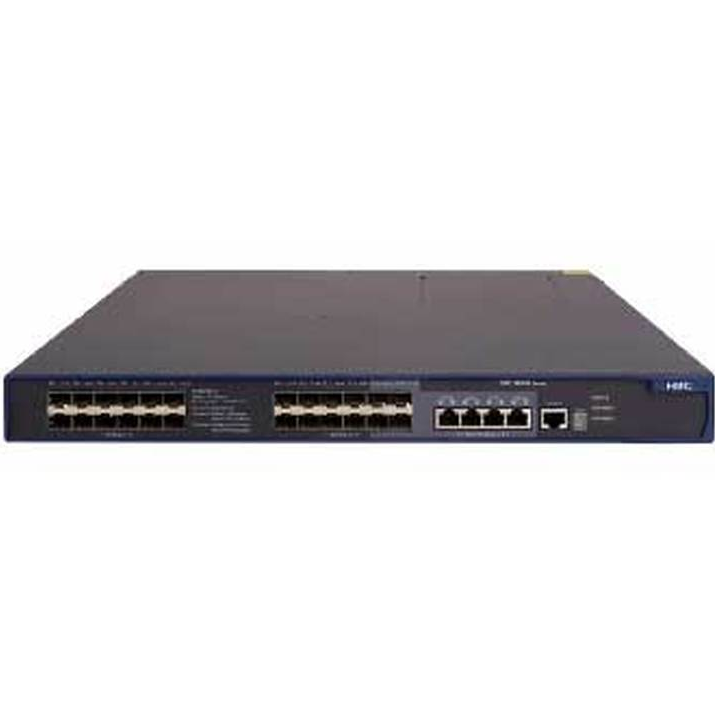

H3C S5510-24F-AC Ethernet Switch 24 Optical Ports Full Gigabit 4 Gigabit Electrical Ports Layer 3 Management Switch

SKU LS-5510-24F-AC-H3

Quick Details:

Products Status:Stock


Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex

Switch Capacity:48Gbps

Brand Name:H3C

Model Number:LS-5510-24F-AC-H3

Place of Origin:Guangdong, China


Dimensions (W x D x H):440*43.6*300 mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

Supporting features
Service port
S5510-24P: 24 10/100 / 1000Base-T Ethernet ports and 4 1000Base-X SFP Gigabit Ethernet ports (Combo)

S5510-24F: 24 1000Base-X SFP Gigabit Ethernet ports and 4 10/100 / 1000Base-T Ethernet ports (Combo)
Dimensions (W × H × D)
440×43.6×300 mm
Management port
1 Console port
Layer 2 and 3 wire speed forwarding
Switching capacity: 48Gbps
Packet forwarding rate: 35.71Mpps
Port aggregation
Support LACP
Support manual aggregation
Supports a maximum of 12 aggregation groups, and each aggregation group supports a maximum of 8GE
MAC address
Support 16K MAC addresses
Support black hole MAC address
Support setting the maximum number of MAC addresses for port address learning
Port characteristics
Support IEEE 802.3x flow control (full duplex)
Support storm suppression based on port rate percentage
Support IRF TITE stacking technology
Supports a maximum of 16 units
Support port VLAN (4K)
Support protocol VLAN
Based on IPv4 subnet VLAN
Support Voice VLAN
Support GVRP / GARP
Support VLAN VPN (QinQ), flexible QinQ
Support VLAN Translation
Support DHCP Server
Supports DHCP-Relay
Support DHCP Client
Support DHCP Snooping
Support DHCP Relay Option82, DHCP Snooping Option82
IP routing
Support static route and default route
Support RIPv1 / v2, RIPng
Support OSPFv1 / v2, OSPFv3
Support IS-IS, IS-ISv6
Support BGP, BGP4 + for IPv6
Support policy routing, equal cost routing
Support VRRP / VRRPv3
Support MCE (Multi-CE)
Support IGMP Snooping, MLD Snooping
Supports multicast VLAN
Support IGMPv1 / v2 / v3
Support PIM-DM, PIM-SM
Support MSDP
Layer 2 ring network protocol
Support STP / RSTP / MSTP
Support RRPP
Supports ND (Neighbor Discovery)
Support PMTU
Support IPv6 Ping, IPv6 Tracert, IPv6 Telnet, IPv6 TFTP
Support manual tunnel configuration
Support 6to4 tunnel
Support ISATAP tunnel
Support Auto-tunnel (that is, automatic IPv4 Compatible IPv6 Tunnel)
Support ACL
Supports ACL based on source MAC address, destination MAC address, source IP address, destination IP address, Layer 4 port,
protocol type, VLAN, etc.
Support user-defined ACL
Supports ACL based on source IPv6 address, destination IPv6 address, Layer 4 port, protocol type, etc.
Support time period ACL
Supports QoS
Supports flow-based traffic rate limiting (8Kbit / s)
Supports flow-based tagging priority
Support flow-based modification packet VLAN ID
Support flow-based packet redirection to port or IP next hop
Supports flow-based traffic statistics
Supports flow-based flow mirroring
Support port queue scheduling (SP / WRR / SP + WRR)
Support port mirroring and RSPAN (remote port mirroring)
Support port traffic shaping
Support port congestion drop
Safety features
Support user hierarchical management and password protection
Support IEEE 802.1X authentication / centralized MAC address authentication
Guest VLAN support
Support RADIUS authentication / HWTACACS
Support ARP intrusion detection
Support IP source address protection
Support port isolation
Support IP + MAC + port binding
Management and maintenance
Support XModem / FTP / TFTP protocol loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration
Support SNMP V1 / V2 / V3, WEB network management
Support RMON (Remote Monitoring) 1, 2, 3, 9 MIBs
Support H3C iMC Intelligent Management Center
Support system log, hierarchical alarm, debugging information output, power status detection and alarm
Support cluster management HGMP V2
Support Modem remote dialing
Support NTP
Supports SSH 2.0
Support Ping, Tracert
Support HWPING
Support Telnet remote maintenance
Supports VCT (Virtual Cable Test)
Support DLDP (Device Link Detection Protocol)
Input voltage
S5510 series Ethernet switches support AC power input and DC power input.
Rated voltage range: 100 ~ 240V AC. 50 / 60Hz
Maximum voltage range: 90 ~ 264V AC. 50 / 60Hz
Rated voltage range: -48 ~ -60V
Maximum voltage range: -36 to -72 V
Power consumption (at full load)
Working temperature
Relative humidity in the working environment (non-condensing)
