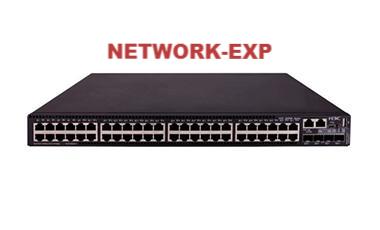

H3C S5560X-54C-EI L3 Ethernet Switch

$2,080.00
SKU
Product overview
LS-5560X-54C-EI L3 Ethernet Switch with 48 10/100/1000BASE-T Ports and 4 10G/1G BASE-X Ports (SFP+ Req) and 1 Slots,No Power,No Fan
H3C S5560X-EI is a series of intelligent Layer 3 managed GE switches with outstanding performance, high port density, and ease of installation.



ProductFeature

  • High scalability and high port density

  • VXLAN (Virtual eXtensible LAN) technology

  • Open Application Architecture

  • Embedded Access Controller

  • High-performance IPv4/IPv6 service capabilities

  • Intelligent Resilient Framework 2 (IRF2)

  • Intelligent Resilient Framework 3.1 (IRF 3.1)

  • Software-defined networking

  • Description
  • Reviews
  • Click here to download the data table.

    Specifications

    Item

    S5560X-30C-EI

    S5560X-54C-EI

    S5560X-30F-EI

    S5560X-54F-EI

    Switching capacity

    288Gbps

    336Gbps

    288Gbps

    336Gbps

    Packet forwarding rate

    216 Mpps

    252 Mpps

    216 Mpps

    252 Mpps

    Dimensions (H × W × D)

    43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

    43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

    43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

    43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

    Weight

    ≤ 6.7 kg (14.77 lb)

    ≤ 7.0 kg (15.43 lb)

    ≤ 6.6 kg (14.55 lb)

    ≤ 6.7 kg (14.77 lb)

    Flash/SDRAM

    512MB/2GB

    Management Ethernet ports

    1

    Console ports

    1 × RJ-45 console port

    1 × Micro-USB console port

    Only the Micro-USB console port is available when you connect both ports.

    Service ports

    24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces)

    4 × 10G SFP+ ports

    48 × 10/100/1000Base-T autosensing Ethernet ports

    4 × 10G SFP+ ports

    24 × SFP ports (including 8 combo interfaces)

    4 × 10G SFP+ ports

    48 × SFP ports

    4 × 10G SFP+ ports

    Expansion slots

    1

    Compatible interface module

    2-port 40GE QSFP+ interface module

    2-port 25G SFP28 interface module

    2-port 10G SFP+ interface module

    2-port 10G electrical interface module

    4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module

    8-port 10G SFP+ interface module

    8-Port 10G SFP Plus with MACSec Interface Module

    8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module

    8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module

    AC input voltage

    PSR150-A1&PSR150-A2:

    Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz

    Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz

    DC input voltage

    PSR150-D1:

    Rated: –48 VDC to –60 VDC

    Max: –36 VDC to –72 VDC

    You can use a –48 VDC power source in the equipment room or an H3C RPS (RPS800-A or RPS1600-A).

    Min. power consumption

    Single AC input: 24 W

    Dual AC inputs: 29 W

    Single DC input: 24 W

    Dual DC inputs: 28 W

    Single AC input: 27 W

    Dual AC inputs: 31 W

    Single DC input: 24 W

    Dual DC inputs: 29 W

    Single AC input: 24 W

    Dual AC inputs: 29 W

    Single DC input: 24 W

    Dual DC inputs: 30 W

    Single AC input: 30 W

    Dual AC inputs: 37 W

    Single DC input: 30 W

    Dual DC inputs: 36 W

    Max. power consumption

    Single AC input: 87 W

    Dual AC inputs: 91 W

    Single DC input: 88 W

    Dual DC inputs: 95 W

    Single AC input: 88 W

    Dual AC inputs: 93 W

    Single DC input: 89 W

    Dual DC inputs: 96 W

    Single AC input: 112 W

    Dual AC inputs: 116 W

    Single DC input: 113 W

    Dual DC inputs: 122 W

    Single AC input: 130 W

    Dual AC inputs: 134 W

    Single DC input: 132 W

    Dual DC inputs: 140 W

    Operating temperature

    0ºC to 45ºC (32°F to 113°F)

    Operating humidity

    5% RH to 95% RH, non-condensing

    SDN/OpenFlow

    OpenFlow 1.3

    Multiple controllers (equal/master/slave controller role)

    Concurrent processing of multiple flow tables

    Group table

    Meter

    VXLAN

    VXLAN Layer 2 switching

    VXLAN routing switching

    VXLAN gateway

    Centralized VXLAN control through OpenFlow+Netconf

    Link aggregation

    1G/10G/40G port aggregation

    Static aggregation

    Dynamic aggregation

    Multichassis link aggregation

    Port features

    802.3x flow control (full-duplex)

    Storm suppression based on port bandwidth percentage

    Storm suppression based on PPS

    Storm suppression based on BPS

    Jumbo frame

    A maximum of 10000 bytes

    MAC address table

    64K MAC address entries

    Blackhole MAC address

    MAC learning limit

    VLAN

    Port-based VLAN

    MAC-based VLAN

    Protocol-based VLAN

    IP subnet based VLAN

    QinQ and flexible QinQ

    VLAN mapping

    Voice VLAN

    MVRP

    Loop-free redundant Layer 2 topology

    STP/RSTP/MSTP

    Smart Link

    RRPP

    G.8032 Ethernet ring protection switching (ERPS)

    DHCP

    DHCP client

    DHCP snooping

    DHCP relay

    DHCP server

    DHCP snooping Option 82/DHCP relay Option 82

    IRF2

    IRF2

    Distributed device management, distributed link aggregation, and distributed resilient routing

    Stacking through standard Ethernet interfaces

    Local device stacking and remote device stacking

    IP routing

    32K IPV4 routing entries

    Static routing

    RIPv1/v2 and RIPng

    OSPFv1/v2/v3

    BGP and BGP4+ for IPv6

    Equal-cost multi-path routing (ECMP) and policy routing

    VRRP/VRRPv3

    IPv6

    Neighbor Discovery (ND)

    PMTU

    IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP

    Manual tunnel

    6to4 tunnel

    ISATAP tunnel

    GRE tunnel

    Multicast

    IGMP Snooping v1/v2/v3 and MLD Snooping v1/v2

    PIM Snooping

    MLD Proxy

    Multicast VLAN

    IGMP v1/v2/v3 and MLD v1/v2

    PIM-DM, PIM-SM, and PIM-SSM

    MSDP and MSDP for IPv6

    MBGP and MBGP for IPv6

    Mirroring

    Flow mirroring

    N:4 port mirroring

    Local port mirroring and remote port mirroring

    QoS/ACL

    Layer 2 to Layer 4 packet filtering

    Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP/UDP port, and VLAN

    Time range-based ACL

    Bi-directional ACLs (inbound and outbound)

    VLAN-based ACL issuing

    Rate limit for receiving and transmitting packets (a minimum CIR of 8 Kbps)

    Packet redirection

    802.1p priority and DSCP priority

    Committed Access Rate (CAR)

    Flexible queue scheduling algorithms based on both port and queue, including SP, WRR, and SP+WRR

    WRED

    Security

    Hierarchical user management and password protection

    802.1X authentication and centralized MAC address authentication

    Guest VLAN

    RADIUS authentication

    SSH 2.0

    Port isolation

    Port security

    EAD

    DHCP snooping

    Dynamic ARP detection

    BPDU guard and root guard

    uRPF

    IP/Port/MAC binding

    Plaintext authentication and MD5 authentication for OSPF and RIPv2 packets

    Public Key Infrastructure (PKI)

    Management and maintenance

    Loading and upgrading through XMODEM/FTP/TFTP

    Configuration through CLI, Telnet, and console port

    SNMP v1/v2/v3

    Web network management

    Remote Monitoring (RMON) alarm, event, and history recording

    IMC network management system

    System log, alarming based on severity, debugging information output

    NTP

    Power, fan, and temperature alarming

    Ping and Tracert

    Virtual Cable Test (VCT)

    Device Link Detection Protocol (DLDP)

    LLDP

    Loopback detection

    Power saving

    Automatic port power-down

    Scheduled port power-down (schedule job)

    EMC

    FCC Part 15 Subpart B CLASS A

    ICES-003 CLASS A

    VCCI CLASS A

    CISPR 32 CLASS A

    EN 55032 CLASS A

    AS/NZS CISPR32 CLASS A

    CISPR 24

    EN 55024

    EN 61000-3-2

    EN 61000-3-3

    ETSI EN 300 386

    GB/T 9254

    YD/T 993

    Safety

    UL 60950-1

    CAN/CSA C22.2 No 60950-1

    IEC 60950-1

    EN 60950-1

    AS/NZS 60950-1

    FDA 21 CFR Subchapter J

    GB 4943.1
