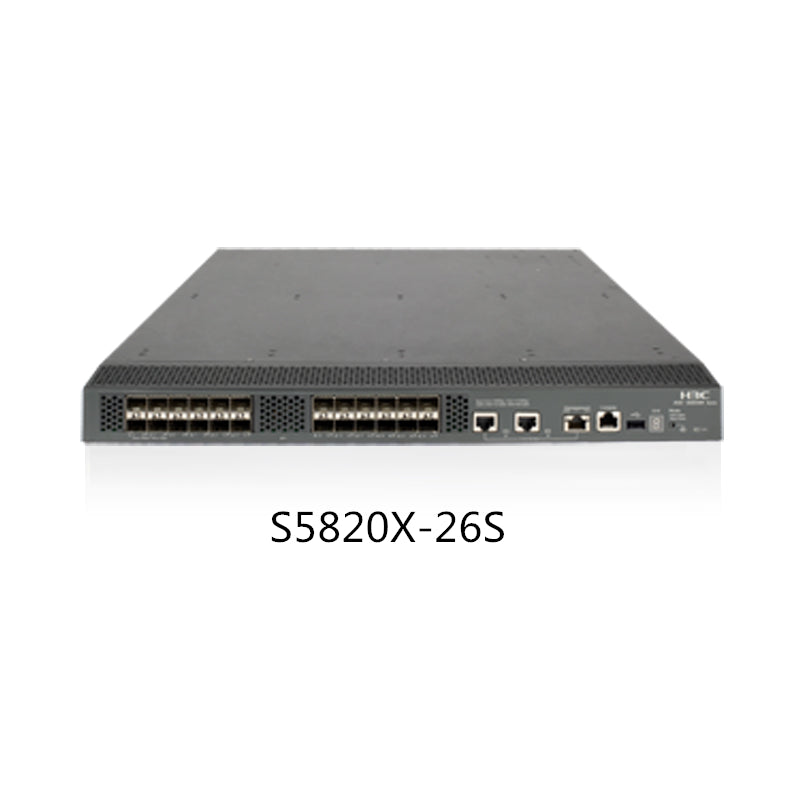

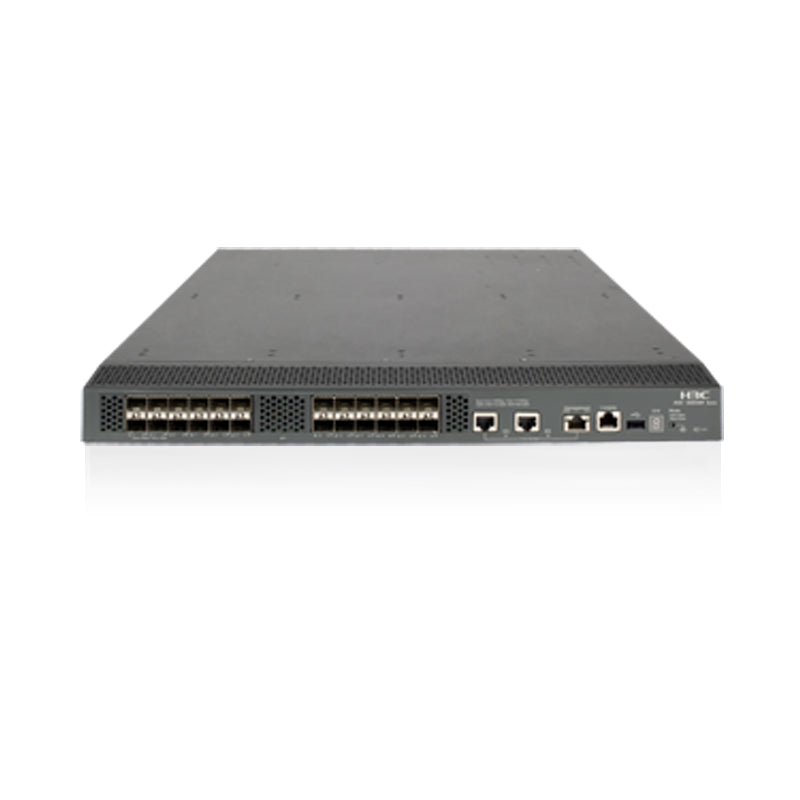

H3C S5820X-26S 24-port 10 Gigabit SFP+ optical 2-port Gigabit three-layer core switch Ethernet switch

Save 8%
$6,500.00
$6,000.00
SKU S5820X-26S

Quick Details:

Products Status:Stock

Ports:24

Transmission Rate:10/100/1000Mbps

Function:QoS

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:680Gbps/6.8Tbps

Brand Name:H3C

Model Number:S5820X-26S

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*427*43.6

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

Item
S5820X-28C
S5820X-28S
S5820X-26S
Dimensions
(length × width × height) (unit: mm)
440×467×86
440×427×43.6
440×427×43.6
weight
≤17kg
≤8.5kg
≤11.2kg
Management port
1 console port
1 console port, 1 outlet port
1 console port, 1 outlet port
USB interface
1个
1个
1个
Fixed service port
14 1/10G SFP+ ports
4 10/100/1000M electrical ports
24 1/10G SFP+ ports
4 10/100/1000M electrical ports
24 1/10G SFP+ ports
2 10/100/1000M electrical ports
Number of slots in the service
3
0
0
Business card type
4-port 1G/10G SFP+ interface module
2-port 1G/10G SFP+ interface module
Firewall module
IPS module
Wireless control service board (large specification)
No
No
Input voltage
AC
Rated voltage range: 100V ~ 240V AC, 50/60Hz
Maximum voltage range: 90V ~ 264V AC, 47/63Hz
DC
Rated voltage range:
-48V to -60V DC
Power consumption (no load)
AC:105W
AC:128W
135W
DC:103W
DC:124W
Power consumption (full load)
AC:245W
AC:185W
205W
DC:241W
DC:176W
Working temperature
0℃~45℃
Working environment relative humidity (non-condensing)
10%~90%
Exchange capacity
680Gbps/6.8Tbps
Packet forwarding rate (machine)
336Mpps
366Mpps
363Mpps
Support features
S5800 series
S5820X series
Forwarding mode
Store-forward mode
Store-forward mode, cut through mode
Link aggregation
Supports GE port and 10GE port aggregation.
Support static aggregation, dynamic aggregation
flow control
Support IEEE802.3x flow control, support back pressure
Jumbo Frame
support
MAC address table
Support black hole MAC address
Supports setting the maximum number of port MAC addresses.
VLAN
Supports VLANs based on ports, protocols, MACs, and IP subnets (4094)
Support QinQ and flexible QinQ
Support for Voice VLAN
VLAN Mapping
Support 1:1 VLAN Mapping
Support N:1 VLAN Mapping
Support 2:2 VLAN Mapping
DHCP
Support DHCP Client
Support DHCP Snooping
Support DHCP Relay
Support DHCP Server
Support DHCPv6
IRF2 intelligent flexible architecture
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation, distributed elastic routing
Support for stacking via standard 10 Gigabit Ethernet interfaces
Support local stacking and remote stacking
IPv4 routing
Support static routing, RIP, OSPFv2, BGP, ISIS
Support equal cost routing, routing policy, VRRP, policy routing
IPv6 routing
Support static routing, RIPng, OSPFv3, BGP4+ for IPV6, ISISv6
Support equal cost routing, routing policy, VRRP, policy routing
URPF
Support reverse route check
BFD
OSPF,BGP,IS-IS,Static Route,RSVP-TE,VRRP
Tunnel
Supports IPv6 manual tunnels, 6to4 tunnels, ISATAP tunnels, IPv4 over IPv4 tunnels, IPv4 over IPv6 tunnels, IPv6 over IPv6
tunnels, GRE tunnels
IPv4 multicast
Support IGMP Snooping v2/v3
Support IGMP v1/v2/v3
Support PIM-DM/SM/SSM
Support MSDP, MBGP
Support multicast VLAN, multicast VLAN+
Support for multicast policies
IPv6 multicast
Support MLD Snooping v1/v2
Support MLD v1/v2
Support PIM-DM/SM/SSM for IPV6
Support MBGP for IPv6
Support IPv6 multicast VLAN, IPv6 multicast VLAN+
MPLS VPN (S5800 series)
Support MPLS
Support VPLS
Support MCE
Broadcast/multicast/unicast storm suppression
Supports storm suppression based on port rate percentage
Support PPS-based storm suppression
Support kbps-based storm suppression
MSTP
Support STP/RSTP/MSTP protocol
Support STP Root Guard, BPDU Guard
RRPP
Support RRPP protocol and RRPP multi-instance
Smart link and Monitor link
Support Smart Link and Smart Link multi-instance
Support for Monitor link
QoS/ACL
Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing source MAC address, destination MAC address, source IP
(IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, VLAN Flow classification
Packet filtering with time range support
Support for large capacity bidirectional ACLs
Limits the rate at which packets are received on the port and the rate at which packets are sent.
Support packet redirection
8 output queues per port
Support flexible queue scheduling algorithm, which can be set based on ports and queues at the same time, supporting SP, WDRR,
WFQ, SP+WDRR four modes
Supports 802.1p and DSCP priority re-marking of packets
Support WRED congestion avoidance mechanism
Mirror
Support N:1 port mirroring and flow mirroring
Support multiple mirrored viewing ports
Support port remote mirroring (RSPAN)
Support for remote mirroring of enhanced ports (ERSPAN)
Safety features
Support user hierarchical management and password protection
Support AAA authentication and RADIUS authentication
Supports MAC address authentication, 802.1x authentication, and portal authentication.
Support HWTACACS
Support for SSH 2.0
Support IP+MAC+ port binding
Support for IP Source Guard
Support for HTTPs, SSL
Support PKI (Public Key Infrastructure)
Support EAD
ARP detection can be performed based on DHCP snooping security entries, 802.1x entries, or IP/MAC static binding entries.
DHCP snooping support to prevent fraudulent DHCP servers
Support BPDU guard, Root guard
Supports plain text and MD5 cipher text authentication for OSPF and RIPv2 packets.
OAA
Firewall card
IPS card
Wireless control service board
Traffic management
Support IPFIX (only supported by S5800 series)
Support sFlow
Loading and upgrading
Support XModem protocol, FTP, TFTP to implement load upgrade
management
Supports the configuration of the command line interface (CLI), Telnet, and console port.
Support SNMPv1/v2/v3
Support RMON (Remote Monitoring) alarms, events, history
Support iMC network management system and support WEB network management
Support system logs and hierarchical alarms
Support cluster management HGMPv2
Support power alarm function
Support fan and temperature alarm
Support NTP
maintain
Support Ping, Tracert, NQA, Track
Support Virtual Cable Test, DLDP
Support 802.1ag, support 802.3ah
Support USB for file upload and download
