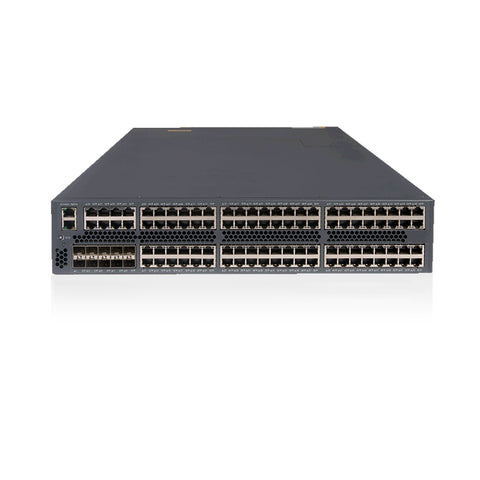

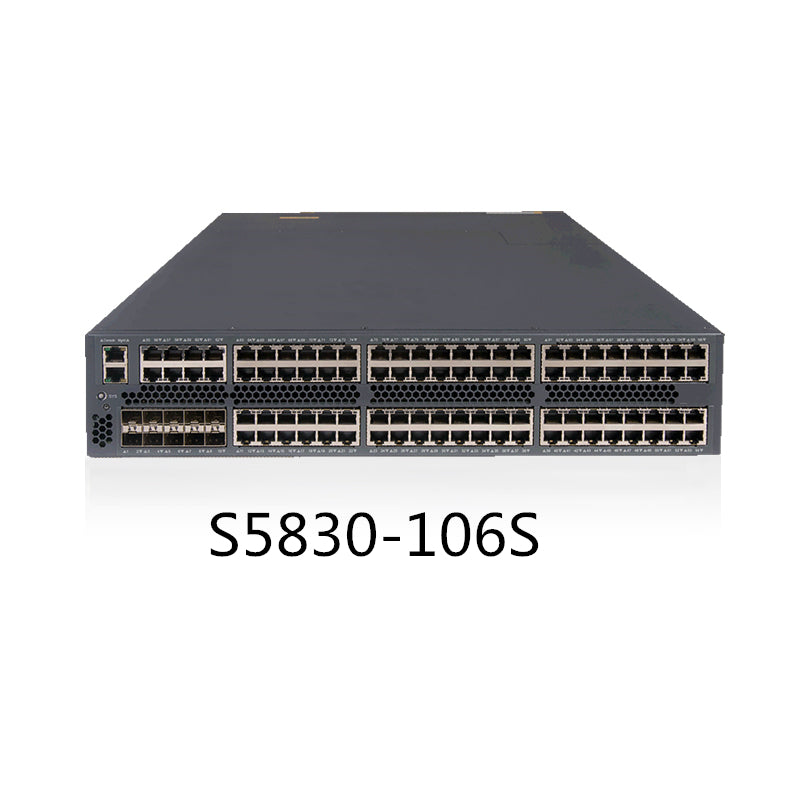

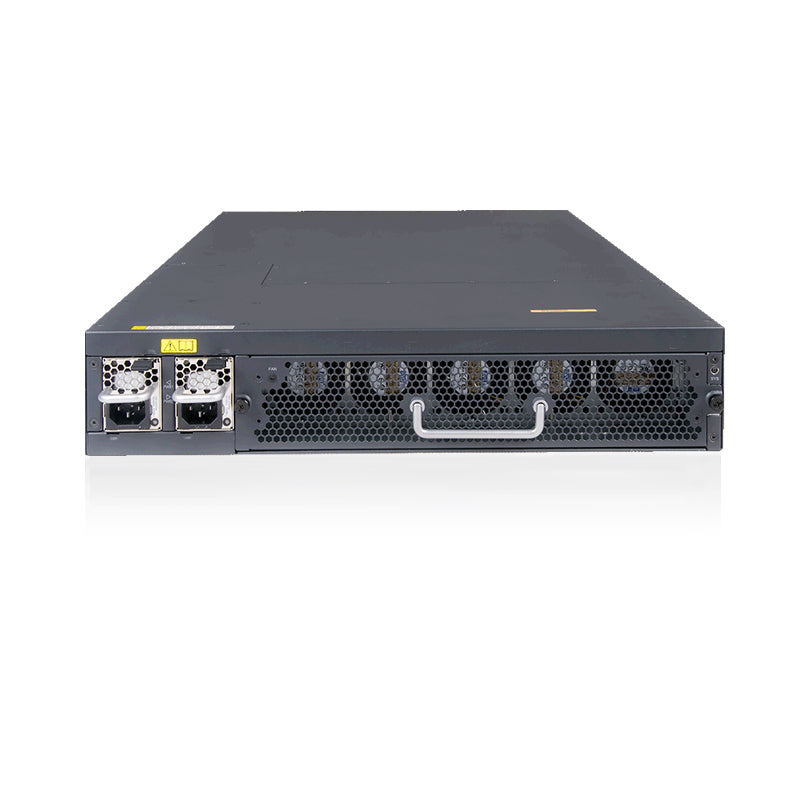

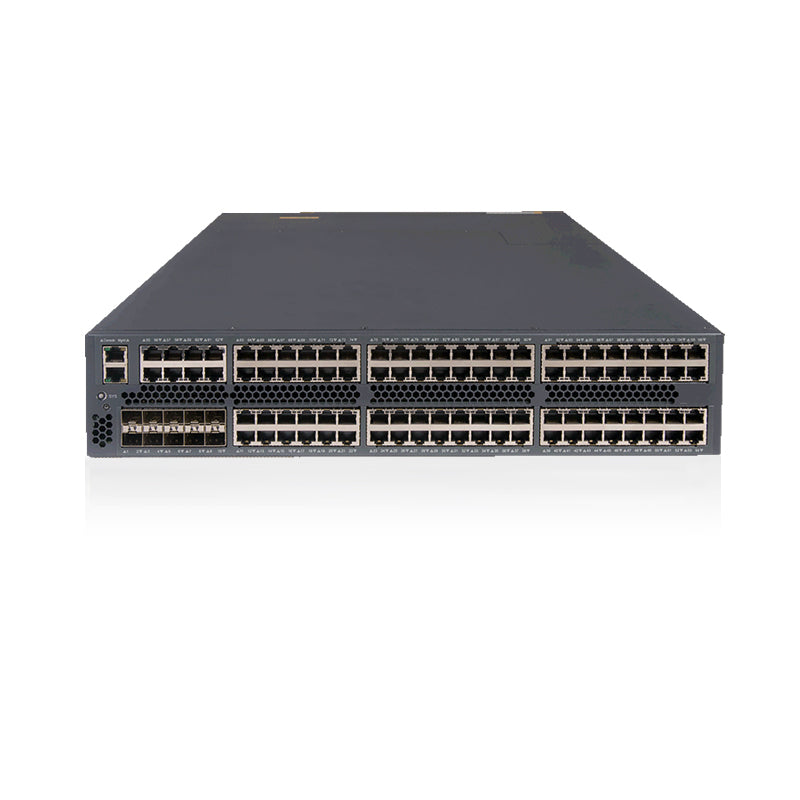

H3C S5830-106S 96 Gigabit Power Port 10 1G / 10G SFP + Port Core Switch

Save 8%
$12,000.00
$11,040.00
SKU S5830-106S

Quick Details:

Products Status:Stock

Ports:96

Transmission Rate:10/100/1000Mbps

Function:POE

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:392Gbps

Brand Name:H3C

Model Number:S5830-106S

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*700*86.1

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

S5830 Series System Features

Project
S5830-52SC
S5830-106S
Dimensions
(length × width × height)
(Unit: mm)
440×460×43.6
440×700×86.1
Fixed service port
48 10/100/1000Base-T Ethernet ports, 2 multiplexed 1G SFP ports (Combo), 2 1G/10G SFP+ ports, 1 expansion slot
96 10/100/1000Base-T Ethernet ports, 10 1G/10G SFP+ ports
Extension port
Support 2-port 10G SFP+ interface board
no
weight
<10kg
<20kg
Management port
1 console port, 1 outlet port
fan
Support multi-level speed regulation
Support air duct direction optional
Input voltage
Rated voltage range: 100V ~ 240V AC, 50/60Hz
AC
Maximum voltage range: 90V ~ 264V AC, 47/63Hz
DC
Rated voltage range: -40V ~ -60V DC
Power consumption (full load)
130W
380W
Working temperature
0℃~45℃
Working environment relative humidity (non-condensing)
5%~95%
Exchange capacity
360Gbps
392Gbps
Packet forwarding rate (machine)
132Mpps
294Mpps

S5830 Series Service Features

Support features
S5830 series
Link aggregation
Supports GE port and 10GE port aggregation.
Support static aggregation, dynamic aggregation
flow control
Support IEEE802.3x flow control, support back pressure
Jumbo Frame
Support
MAC address table
Support black hole MAC address
Supports setting the maximum number of port MAC addresses.
VLAN
Support for port-based VLANs (4094)
Support GVRP
DHCP
Support DHCP Client
Support DHCP Snooping
IRF2
Intelligent flexible architecture
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation, distributed elastic routing
Support for stacking via standard Ethernet interfaces
Support local stacking and remote stacking
Supports MAD stack split detection mechanism based on LACP, BFD, and ARP
IPv4 routing
Support static routing, RIP, OSPFv2, BGP, ISIS
Support equal cost routing, routing policy, VRRP, policy routing
IPv6 routing
Support static routing, RIPng, OSPFv3, BGP4+ for IPV6, ISISv6
Support equal cost routing, routing policy, VRRP, policy routing
IPv4 multicast
Support IGMP Snooping
Support IGMP v1/v2/v3
Support PIM-DM/SM/SSM
Support MSDP
Support for multicast VLAN
Support for multicast policies and multicast QoS
IPv6 multicast
Support MLD Snooping v1/v2
Support MLD v1/v2
Support PIM-DM/SM/SSM for IPV6
Support IPv6 multicast VLAN
reliability
Supports reliability functions such as GR, NSR, BFD, and FRR
Broadcast/multicast/unicast storm suppression
Supports storm suppression based on port rate percentage
Support PPS-based storm suppression
Support for bandwidth suppression based on bandwidth kbps
MSTP
Support STP/RSTP/MSTP protocol
Support for STP Root Guard
Support BPDU Guard
Smart link
Support for Smart link and Monitor link
Support Smart Link multi-instance
QoS/ACL
Limits the rate at which packets are received on the port and the rate at which packets are sent.
Support packet redirection
Support CAR (Committed Access Rate) function
8 output queues per port
Support flexible queue scheduling algorithm, which can be set based on ports and queues at the same time, supporting multiple
modes of SP, WRR, SP+WRR, WFQ, SP+WFQ
Supports 802.1p and DSCP priority re-marking of packets
Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing source MAC address, destination MAC address, source IP
(IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, VLAN Flow classification
Packet filtering with time range support
Support for large capacity bidirectional ACLs
Support WRED (Weighted Random Early Detection)
Support port Shapping
Mirror
Support N:1 port mirroring and flow mirroring
Support remote mirroring of ports
Safety features
Support user hierarchical management and password protection
Support for 802.1x-based, MAC-based authentication
Support AAA certification
Support RADIUS authentication
Support HWTACACS
Support for SSH 2.0
Support port isolation
Support IP+MAC+ port binding
Support for IP Source Guard
Loading and upgrading
Support XModem protocol, FTP, TFTP to implement load upgrade
management
Supports the configuration of the command line interface (CLI), Telnet, and console port.
Support SNMPv1/v2/v3
Support RMON (Remote Monitoring) alarms, events, history
Support iMC network management system and support WEB network management
Support system logs and hierarchical alarms
Support power alarm function
Support fan and temperature alarm
maintain
Support ISSU
Support Ethernet OAM
Support sFlow-based network traffic analysis
Support debugging information output
Support Ping, Tracert
Support Telnet remote maintenance
Support for virtual cable detection
Support DLDP

Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.

Company Profie:

TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...

Our Certificates:

FAQ:

Q1:What's your main product?

TFC mainly produce networking equipment, server , storage equipment etc.

Q2:What's your payment term?
Usually L/C,T/T,D/P,D/A ,it is determined by our negotiation.

Q3:Can you customize product?
Yes, TFC can supply you products according to your requirement .

Q4:What is the MOQ and Leading?
Usually 30~50 working days for delivery.
