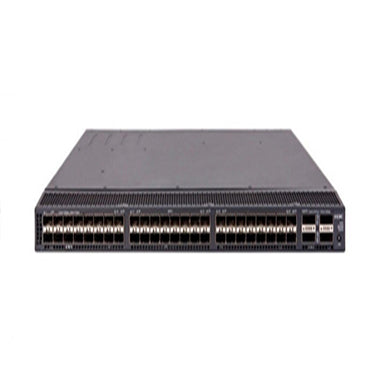

H3C S6300-52QF Series Data Center Switches Ethernet switch
Save 5%
$7,500.00
$7,150.00
SKU LS-6300-52QF
Quick Details
Products Status:Stock
Ports:≥ 48
Transmission Rate:10/100/1000Mbps
Function:QoS
Certification:RADIUS
Switch Capacity:1.28Tbps
Brand Name:H3C
Model Number:LS-6300-52QF
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H):440*660*43.6mm
Packaging & Delivery
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port:HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description
|
Features
|
S6300-52QF
|
S6300-48S
|
S6300-42QF
|
S6300-42QT
|
|
Dimensions (W × D × H)
|
440×460
×43.6mm |
440×460
×43.6mm |
440×460
×43.6mm |
440×660
×43.6mm |
|
Weight
|
≤10kg
|
|||
|
Flash/SDRAM
|
512MB/2GB
|
|||
|
Console port
|
1
|
|||
|
Ethernet port for
management |
1
|
|||
|
USB port
|
1
|
|||
|
10G Base-T port
|
0
|
32
|
||
|
SFP Plus
|
48
|
40
|
8
|
|
|
QSFP(40GE)
|
4
|
0
|
2
|
2
|
|
Input Voltage
|
AC：Rated voltage range: 100V to 240V AC,50/60Hz Maximum voltage range: 90V to 264V AC, 47/63Hz
|
|||
|
DC：Rated voltage range: -40V to -60V DC;
Maximum voltage range: -40V to -72V DC |
||||
|
Fan
|
Hot-swappable fan, fan speed adjustable
and wind invertible |
|||
|
Power consumption
(in full configuration) |
250W
|
230W
|
240W
|
370W
|
|
Operating temperature
|
0ºC～45ºC
|
|||
|
Operating relative humidity
(non-condensing) |
10%～90%
|
|||
|
Port Switching Capacity
|
1.28Tbps
|
0.96Tbps
|
0.96Tbps
|
0.96Tbps
|
|
Forwarding performance
|
960Mpps
|
720Mpps
|
720Mpps
|
720Mpps
|
|
Forwarding mode
|
Store-forward and cut-through
|
|||
|
Horizontal Virtualization
|
Intelligent Resilient Framework 2 (IRF2)
Distributed device management, distributed link aggregation, distributed resilient routing Stacking through standard Ethernet port Local and remote stacking LACP, BFD and ARP based MAD stacking collision inspection mechanism |
|||
|
Link aggregation
|
10GE port aggregation
40GE port aggregation static aggregation, dynamic aggregation |
|||
|
Data center features
|
VEPA 802.1Qbg
802.1Qbb PFC, 802.1Qaz ETS, ECN FCoE Packet Transparent Pass through T11 standards-compliant FCoE (FC-BB-5) Fibre Channel forwarding (FCF) N-Port Virtualization (NPV) technology N-port identifier virtualization (NPIV) Standard zoning Fibre Channel ping TRILL TRILL & IRF |
|||
|
Jumbo Frame
|
Support
|
|||
|
MAC address table
|
Static MAC address
Blackhole MAC address Can configure maximum number of port MAC address |
|||
|
VLAN
|
Port-based VLAN (4094 items)
Default VLAN QINQ and Flexible QINQ VLAN MAPPING PVST+, RPVST+ |
|||
|
Traffic monitoring
|
Support sFlow
|
|||
|
DHCP
|
DHCP Client
DHCP Snooping DHCP Relay DHCP Server DHCP Snooping option82/DHCP Relay option82 |
|||
|
ARP
|
Static table entry
Gratuitous ARP Standard proxy ARP and local proxy ARP Dynamic ARP Inspection ARP anti-attack ARP source suppression ARP Detection function (check according to DHCP Snooping safety entry, 802.1x table entry or IP/MAC static binding table entry) |
|||
|
Routing
|
IPv4, IPv6 Static routing, RIP v1/2 and RIPng
ECMP, VRRP, OSPFv1/v2/v3, BGP |
|||
|
Multicast protocol
|
IGMP Snooping v2/v3
IGMP Snooping Fast-leave IGMP Snooping Group-policy PIM snooping MSDP MVRP MFF IPv6 PIM snooping, IPv6 multicast VLAN, IPv6 PIM |
|||
|
Zero configuration
|
Zero-touch configuration based on DHCP
Auto-config or CWMP-TR069 |
|||
|
Broadcast / Multicast / Unicast
storm suppression |
Port rate percentage based
PPS-based BPS-based |
|||
|
MSTP
|
STP/RSTP/MSTP
STP Root Guard Root Protection, Loop Protection, Edge Port/BPDU Guard BPDU Guard |
|||
|
QoS/ACL
|
Flow control
Committed Access Rate (CAR) 8 output queues per port Flexible queue scheduling algorithm can be set based on port and queue, support SP, WDRR, WRR, WFQ, SP + WDRR and other models 802.1p and DSCP priority re-marking L2 (Layer 2) ~ L4 (Layer 4) packet filtering based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, and VLAN Traffic Classification Time range |
|||
|
Mirror
|
Flow Mirroring
N: 4 port mirroring Local and remote port mirroring |
|||
|
Security features
|
Hierarchical user management and password protection
ARP packet rate limit, ARP attack protection Centralized MAC authentication 802.1X Storm constrain AAA authentication RADIUS authentication HWTACACS SSH 2.0 Port isolation IP + MAC + port binding IP Source Guard HTTPs SSL Public Key Infrastructure (PKI) |
|||
|
Firmware upgrade
|
Upgrade via the XModem, File Transfer Protocol (FTP) and Trivial File Transfer Protocol (TFTP)
|
|||
|
Management and maintenance
|
Configuration via CLI, Telnet, and Console port
Schedule job ISSU 802.1ag and 802.3ah SNMPv1/v2c/v3(Simple Network Management Protocol) H3C Intelligent Management Centre (iMC) System log hierarchical alarm NTP Power, fan and temperature alarms Debug string output Ping, Tracert Track Telnet remote maintenance Copy switch files to and from a USB flash drive |
|||
|
EMC
|
FCC Part 15 Subpart B Class A
ICES-003 CLASS A VCCI CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254 YD/T993 |
|||
|
Safety
|
UL 60950-1
CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
|||
High-Density 10GE Ports
As client side network bandwidth grows, 10GE adapters are increasingly common in servers, switches have to deliver a higher
forwarding performance and provide more 10GE expansion space. S6300-52QF features 48 SFP+ optical ports and 4*40G QSFP ports,
S6300-42QF features 40 SFP+ optical ports, and 2*40G QSFP ports, S6300-48S features 48 SFP+ optical ports and S6300-42QT features
32 10G Base-T ports, 8 SFP+ optical ports and 2*40G QSFP ports. Each 40G QSFP port can run as a single 40G port or 4 10GE ports
with conversion cables.
Intelligent Resilient Framework 2 (IRF2)
S6300 series is pre-built with Intelligent Resilient Framework 2 (IRF2). IRF2 provides the following benefits:
High scalability: With IRF2, plug-n-play device aggregation can be achieved by adding one or more switches into the IRF2 stack
and enabling IRF2 stacking on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce
network expansion cost.
High reliability: The IRF2 patented 1:N backup technology allows each slave device in the IRF2 stack to serve as the backup of
the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliability,
avoids unplanned business downtime and serves to improve overall performance. When the master device fails, traffic remains
uninterrupted.
Load balancing: IRF2 supports cross-device link aggregation, upstream and downstream can be connected to more than one physical
link, which creates another layer of network redundancy and boosts the network resource utilization.
Availability: H3C Implements IRF2 through standard Forty Gigabit Ethernet (40GE) or Ten Gigabit Ethernet (10GE) ports which
allocates bandwidth for business and application access and reasonably splits local traffic and upstream traffic. IRF2 rules can
not only be obeyed within and across the rack, but also across the LAN.
Data Center-Oriented Features
S6300 series adopts the modular dual power supply and dual fans design, both supporting hot plug-in and pull-out. With the
modular software platform, the software function modules can be added and deleted flexibly according to requirements. Through
exquisite physical structure and software process optimization, the end-to-end packet processing latency is greatly reduced, which
is on 10GE/40GE ports less than 1us, 20% less than average in the industry.
S6300 series supports EVB (Edge Virtual Bridging) and uploads data traffic generated on VMs (Virtual Machines) to switches
connected with servers for processing via VEPA (Virtual Ethernet Port Aggregation), not only forward traffic between VMs, but
solve problems of connection and management boundary between VMs and network.
FCoE technology leverages Ethernet packet to carry FC traffic, so that FC SAN can share the same network with Ethernet LAN to
solve coexistence problems of different types of networks. S6300 switch series supports full FCoE and FC protocol stack.
TRILL (Transparent Interconnection of Lots of Links) is an innovative technology that changes the traditional way to build data
center networks. It introduces benefits of layer 3 routing technology, such as stable, scalable and high performance into layer 2
switching network (traditional limited performances and network scenario) to make Layer 2 network more flexible, extensible, and
high-performance. It is an ideal choice for S6300 switch series with TRILL to build a large scale, high-performance, and
extensible cloud Data Center networks that which supports VMs dynamic migration.
SDN (Software Defined Network) is an innovative network framework that simplifies network management and reduces maintenance
complexity with the core technology of OpenFlow which separates control plane from forwarding layer. It also controls traffic
flexibly and provide a well-defined network platform for core network application and innovation.
S6300 switch series supports DCB (Data Center Bridging), ISSU (In-service Software Upgrade), OAM (Operations, Administration and
Maintenance) and Energy-Efficient Ethernet (EEE). It fully satisfies Data Center’s requirements of high performance, easy
management and green energy saving.
Flexible Choice of Airflow
To cope with data center cooling aisle design, H3C S6300 series comes with flexible airflow design, which features bi-cooling
aisles in front and back. Users may also choose the direction of airflow (from front to back or vice versa) by selecting a
different fan tray.
Outstanding Security Control Policies
H3C S6300 series supports AAA, RADIUS and user account based authentication, IP, MAC, VLAN, port-based user identification,
dynamic and static binding; when working with the H3C iMC platform, it can conduct real time management, instant diagnosis and
crackdown on illicit network behavior.
H3C S6300 series supports enhanced ACL control logic, which supports an enormous amount of in-port and out-port ACL, and delegate
VLAN based ACL. This simplifies user deployment process and avoids ACL resource wastage.
Multiple Reliability
H3C S6300 series provides multiple reliability functions at both box and link levels, with over current, overvoltage, and
overheat protection.
All models have a redundant pluggable power module, which enables flexible configuration of AC or DC power modules based on
actual needs. The entire switch supports fault detection and alarm for power supply and fan, allowing fan speed to change to suit
different ambient temperatures.
Excellent Manageability
H3C S6300 series supports rich management interfaces, including console, out of band management and USB Management protocols such
as SNMPv1/v2/v3, iMC Intelligent Management Center) also supported. The network administrator may activate control through CLI,
Web interface and TELNET which gives maximum flexibility in accessing and managing the device. SSH2.0 and SSL encryption can also
be used to protect the management session.
