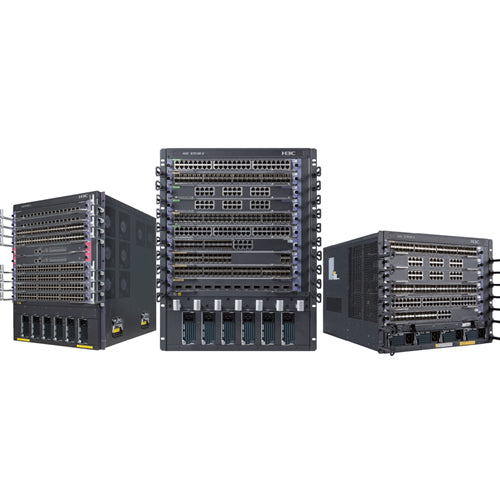

H3C S7500E-X S7506E-X series high-end multi-service routing switch Ethernet switch
H3C S7500E-X S7506E-X series high-end multi-service routing switch Ethernet switch
Regular price
$4,050.00 USD
Regular price
$4,300.00 USD
Sale price
$4,050.00 USD
Unit price
/
per
Couldn't load pickup availability
Quick Details
-
Products Status:Stock
-
Ports:≥ 48
-
Transmission Rate:10/100/1000Mbps
-
Function:QoS
-
Communication Mode:e:Full-Duplex & Half-Duplex
-
Certification:Portal
-
Switch Capacity:65.7Tbps/256 Tbps
-
Brand Name:H3C
-
Model Number:S7506E-X/S7510E-X
-
Place of Origin:Guangdong, China
-
Warranty:1year
-
Dimensions (W x D x H):620*440*660 14RU
Packaging & Delivery
-
Packaging Details
-
1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
-
Port
-
HongKong
-
Lead Time :
-
Quantity(Pieces)
1 - 1
>1
Est. Time(days)
30
To be negotiated
Product Description
AttributesS7506E-XS7508E-XS7510E-XExchange capacity31.1Tbps/153.653.1Tbps/20565.7Tbps/256TbpsTbpsTbpsPacket forwarding rate5760Mpps/36000 Mpps7680Mpps/48000 Mpps8400Mpps/72000 MppsNumber of slots91413Number of service slots6810Number of slots on the switch stencil1~4Redundant designMaster control, switching network board, power supply, fanMaster control, switching network board, power supply, fanMaster control, switching network board, power supply, fanLayer 2 characteristicsSupport IEEE 802.1P (CoS priority)
Support for IEEE 802.1Q (VLAN)
Support IEEE 802.1d (STP) / 802.1w (RSTP) / 802.1s (MSTP)
Support IEEE 802.1ad (QinQ), flexible QinQ and Vlan mapping
Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Support IEEE 802.3ad (link aggregation) and cross-board link aggregation
Support IEEE 802.3 (10Base-T) / 802.3u (100Base-T)
Support IEEE 802.3z (1000BASE-X) / 802.3ab (1000BaseT)
Support IEEE 802.3ae (10Gbase)
Support for IEEE 802.3af (PoE)
Support IEEE 802.3at (PoE+)
Support RRPP (Rapid Ring Protection Protocol)
Support for cross-board port/flow mirroring
Support port broadcast/multicast/unknown unicast storm suppression
Support Jumbo Frame
Support VLAN-based partitioning based on port, protocol, subnet, and MAC
Support SuperVLAN
Support PVLAN
Support for Multicast VLAN+
Support point-to-point single VLAN cross-connect, dual VLAN cross-connect
All rely on VLAN-ID for forwarding, does not involve MAC address learning
Supports the largest VLAN MAPING/flexible QinQ entries.
Full support for VLAN MAPPING capabilities
Support GVRP
Support LLDPIPv4 routing featuresSupport ARP Proxy
Support DHCP Relay
Support DHCP Server
Support static routing
Support RIPv1/v2
Support OSPFv2
Support IS-IS
Support BGPv4
OSPF/IS-IS/BGP GR ( Graceful Restart graceful restart)
Support equal cost routing
Support policy routing
Support routing strategyIPv6 routing featuresSupport ICMPv6
Support ICMPv6 redirection
Support DHCPv6
Support ACLv6
Support OSPFv3
Support RIPng
Support BGP4+
Support IS-ISv6
Support manual tunnel
Support for ISATAP
Support 6to4 tunnel
Support for IPv6 and IPv4 dual stacksMulticastSupport IGMPv1/v2/v3
Support IGMPv1/v2/v3 Snooping
Support IGMP Filter
Support IGMP Fast leave
Support PIM-SM/PIM-DM/PIM-SSM
Support MSDP
Support AnyCast-RP
Support MLDv2/MLDv2 Snooping
Support PIM-SMv6, PIM-DMv6, PIM-SSMv6ACL/QoSSupport for standard and extended ACLs
Support for VLAN-based ACLs
Support for Ingress/Egress ACLs
Supports Ingress/Egress CAR with a granularity of up to 8Kbps
Support two levels of meter capabilities
Supports VLAN aggregation CAR and MAC aggregation CAR function.
Support traffic shaping (Traffic Shaping)
Support 802.1P/DSCP priority Mark/Remark
Support for hierarchical QoS (H-QoS)
Support 8 priority queues
Support queue scheduling mechanism, including SP, WRR, SP+WRR, CBWFQ
Support congestion avoidance mechanisms, including Tail-Drop, WRED
Support MirroringSDN/
OPENFLOWSupport OPENFLOW 1.3 standard
Support multiple controllers (EQUAL mode, active/standby mode)
Support multi-table pipeline
Support Group table
Support MeterVxLANSupport VXLAN Layer 2 switching
Support VXLAN routing exchange
Support for VXLAN gatewaysMPLS/VPLSSupport for L3 MPLS VPN
Support for L2 VPN: VLL (Martini, Kompella)
Support MCE
Support MPLS OAM
Support VPLS, VLL
Support for layered VPLS and QinQ+VPLS access
Support P/PE function
Support LDP protocolSecurity MechanismSupport EAD security solutions
Support Portal authentication
Support MAC authentication
Support for IEEE 802.1x and IEEE 802.1x SERVER
Support AAA/Radius
Support HWTACACS and support command line authentication
Support SSHv1.5/SSHv2
Support ACL flow filtering mechanism
Supports plain text and MD5 cipher text authentication for OSPF, RIPv2, and BGPv4 packets.
The command line is protected in a hierarchical manner to prevent unauthorized users from being hacked. Different levels of users
have different configuration rights.
Telnet login and password mechanism supporting limited IP addresses
Supports multiple combinations of IP addresses, VLAN IDs, MAC addresses, and ports.
Support uRPF
Support primary and backup data backup mechanism
Support post-fault alarm and self-recovery
Support data logSystem ManagementSupport FTP, TFTP, Xmodem
Support SNMP v1/v2/v3
Support sFlow traffic statistics
Support RMON
Support NTP clock
Support NetStream traffic statistics function
Support power intelligent management, support 802.3az energy efficient Ethernet
Support device online status monitoring mechanism to detect key components including main engine, backplane, chip and storage
Support Telemetry traffic visualizationProgrammabilitySupport Ansible automation configuration, realize network configuration batch releasereliabilitySupport main control board 1+1 redundancy backup
Support power 1+1 redundancy backup
Passive backplane design
All boards support hot swap
Support CPU protection technology
Support +/-8KV lightning protection
Support VRRP
Support RPR
Support BFD for OSPF, BGP, IS-IS, and Static Route
Support for Ethernet OAM (802.1ag and 802.3ah)
Support for MAC Tracert
Support RRPP
Graceful Restart for OSPF/BGP/IS-IS
Support DLDP
Support VCT
Support Smart-Link
Support hot patchpower supplyDC:–48V~–60VAC:100V~290VDimensions (height x width x depth) (mm)353x440x660620 x440x 660620x440x6608RU14RU14RUOur Certificates
