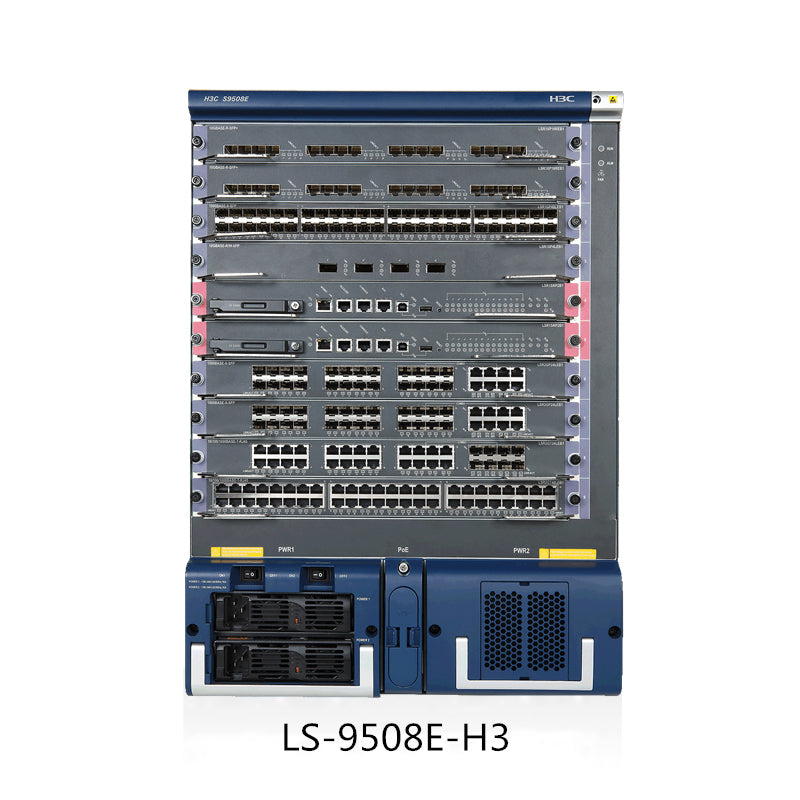

H3C S9508E horizontal subrack routing switch host layer 3 core switch
Quick Details:
Products Status:Stock
Ports:≥ 48
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex & Half-Duplex
Certification:RADIUS
Switch Capacity:4.8Tbps
Brand Name:H3C
Model Number:LS-9508E-H3
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H):620*442*450
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
Attributes
|
S9505E
|
S9508E
|
S9508E-V
|
S9512E
|
||
Backplane
bandwidth |
3Tbps
|
4.8Tbps
|
7.2Tbps
|
|||
Exchange capacity
|
720G/1.92T
|
1.44T/3.84T
|
1.44T/3.84T
|
|||
Packet forwarding rate
|
360Mpps/600Mpps
|
576Mpps/960Mpps
|
864Mpps/1440Mpps
|
|||
Number of slots on
the main control board |
2
|
2
|
2
|
|||
Business board
slot number |
5
|
8
|
12
|
|||
Redundant design
|
Main control, fan, power supply redundancy
|
|||||
Ethernet function
|
Support 802.1Q
Support DLDP, LLDP Support PoE Support PBB Static MAC configuration Support MAC address learning limit Support port mirroring and flow mirroring Support port aggregation and port isolation Support 802.1d (STP) /802.1w (RSTP) /802.1s (MSTP) Support 802.3ad (dynamic link aggregation), static port aggregation, and cross-board link aggregation |
|||||
IPv4
|
Support routing interface and routing sub-interface
Support static routing, RIP, OSPF, IS-IS, BGP4, etc. Supports equal cost routing Supports policy routing Support routing strategy Supports GRE, IPv4, IPv4 and other tunnel functions |
|||||
IPv6
|
Supports IPv4 and IPv6 dual protocol stacks
Support IPv6 static routing, RIPng, OSPFv3, IS-ISv6, BGP4 + Support VRRPv3 Support ND, PMTUD Support Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6 Support IPv4 to IPv6 transition technologies, including: IPv6 manual tunnel, 6to4 tunnel, ISATAP tunnel, GRE tunnel, IPv4-compatible automatic configuration tunnel Supports equal cost routing Supports policy routing Support routing strategy |
|||||
Multicast
|
Support PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Any-RP and other routing protocols
Support IGMP V1 / V2 / V3, IGMP V1 / V2 / V3 Snooping Support PIM6-DM, PIM6-SM, PIM6-SSM Support MLD (Multicast Listener Discovery) V1 / V2, MLD V1 / V2 Snooping Supports multicast policies and multicast QoS, supports multicast ARP Support bidirectional PIM |
|||||
MPLS VPN
|
Support P / PE function, accord with RFC2547bis protocol
Support three cross-domain MPLS VPN methods (Option1 / Option2 / Option3) Supports hierarchical PE and multi-role hosts Support VLL to realize point-to-point Layer 2 MPLS VPN function, Support VPLS / H-VPLS to implement point-to-multipoint Layer 2 MPLS VPN function Support distributed multicast VPN Support 6PE, 6VPE |
|||||
ACL
|
Supports standard and extended ACLs
Support Ingress / Egress ACL Support VLAN ACL Support global ACL |
|||||
QoS
|
Support Diff-Serv QoS
Support queue scheduling mechanism such as SP / SDWRR Support refined traffic policing, granularity up to 1Kbps Support traffic shaping Support congestion avoidance Support priority mark Mark / Remark Support 802.1p, TOS, DSCP, EXP priority mapping Support VOQ |
|||||
reliability
|
Dedicated FFDR monitoring engine
Key components switch routing processing board and power supply support 1 + 1 redundant backup Backplane adopts passive design to avoid single point of failure Each component supports hot-swap function Supports real-time hot backup of various configuration data on the active and standby main control boards Support hot patch function, can carry out patch upgrade online Support NSF / GR, OSFP / BGP / IS-IS / LDP / RSVP, etc. Support NSR for OSFP / BGP / IS-IS, etc. Support port aggregation and link cross-board aggregation Supports BFD for VRRP, BGP, IS-IS, OSPF, RSVP, static routing, etc., to implement a rapid fault detection mechanism for each protocol, and the fault detection time is less than 50ms Support IPFRR, TEFRR, service switching time is less than 50ms |
|||||
safety
|
Support user hierarchical management and password protection
Supports SSHv2, providing a secure encrypted channel for user login Support FTP login and password mechanism with controllable IP address Supports standard and extended ACLs to filter packets and prevent network attacks Support to prevent ARP, unknown multicast messages, broadcast messages, unknown unicast messages, local network segment route scanning messages, TTL = 1 message, protocol message Support MAC address restriction, IP + MAC binding function Support uRPF technology to prevent network attack based on source address spoofing Support ND anti-attack Support Portal authentication and Radius Support VRRP, OSPF, RIPv2 and BGP4 plaintext and MD5 ciphertext authentication Supports secure network management SNMPv3, SSHv2 Support broadcast message suppression Supports master and backup data backup mechanism Supports security cards such as firewalls and IPS |
|||||
NAT
|
Support load balancing of multiple NAT boards
Supports NAT, NAPT, and NAT / NAPT multi-instance Supports two-way NAT and two-way NAT Support NAT log function Support blacklist function Support for internal servers Support application layer gateway ALG |
|||||
Network traffic analysis
|
Support sFlow / Netstream
Support V5 / V8 / V9 analysis message format Support multi-purpose host function |
|||||
Wireless control module
|
Support 802.3 LAN protocol
Support 802.11 LAN protocol Support CAPWAP protocol Support IP routing, multicast Support rich security authentication, AAA, 802.11 security and encryption, WIDS / WIPS, etc. Support AP power automatic adjustment Support automatic channel switching Support AP load sharing Supports rich QoS functions |
|||||
System Management
|
Support Console / AUX Modem / Telnet / SSH2.0 command line configuration
Support FTP, TFTP, Xmodem, SFTP file download management Support SNMP V1 / V2c / V3 Support RMON, support 1, 2, 3, 9 groups Support NTP clock Support NQA (Network Quality Analyzer) Support alarm and self-recovery after failure Support system work log |
|||||
Power requirements
|
DC: Input voltage: -48V ~ -60V
AC: Input voltage: 100V ~ 240V Output power: 3500W |
|||||
Ambient temperature
|
Operating ambient temperature: 0 ℃ ~ 45 ℃
Storage environment temperature: -40 ℃ ~ 70 ℃ |
|||||
environment humidity
|
Operating environment humidity: 5% to 95% (non-condensing)
Storage environment humidity: 5% to 95% (non-condensing) |
|||||
Environmental protection
|
WEEE, RoHS, etc.
|
|||||
Safety
|
CE、UL/cUL、FCC-PART15、VCCI等
|
|||||
Equipment power consumption
|
1160W
|
1670W
|
1685W
|
2380W
|
||
Weight (full configuration)
|
≤70 KG
|
≤90 KG
|
≤100 KG
|
≤110 KG
|
||
Dimensions
(H × W × D) mm |
486×442×450
|
620×442×450
|
975×436×450
|
753×442×450
|
||
