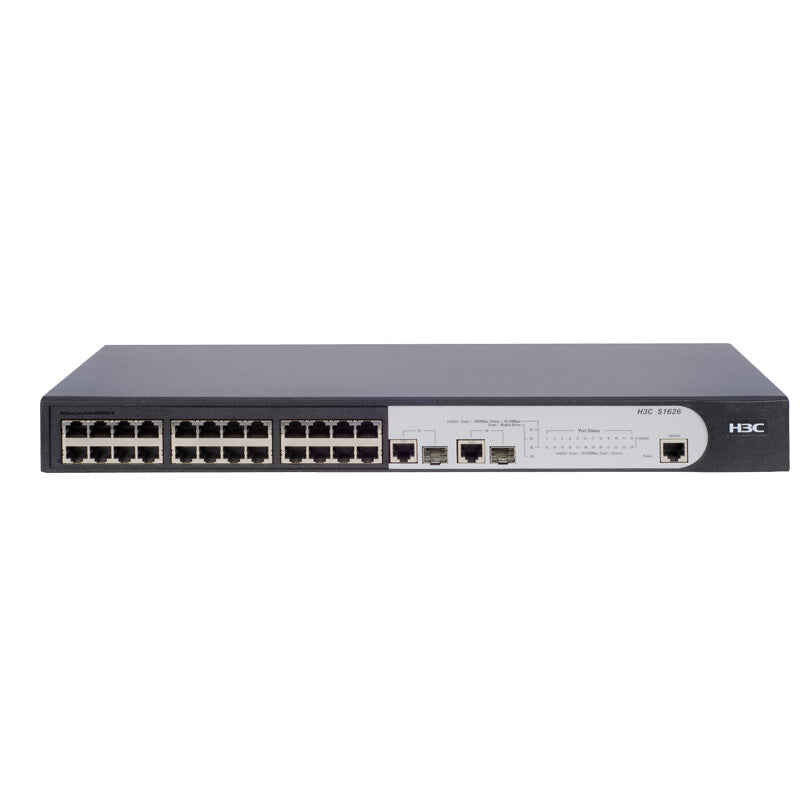

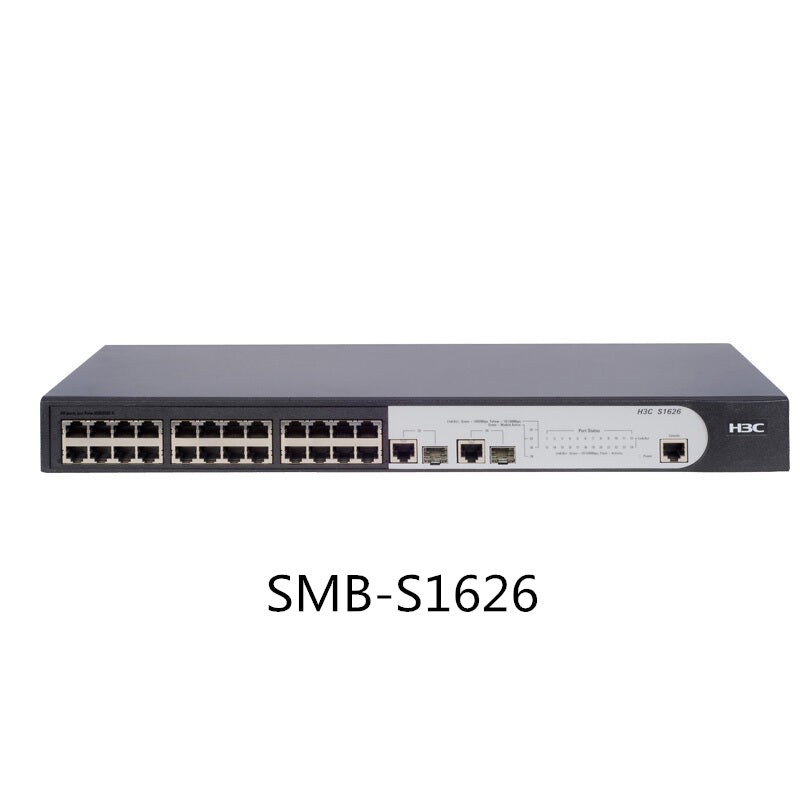

H3C SMB-S1626 Ethernet Switch 24 Port 100M Speed Limit Binding Intelligent Network Management VLAN Switch

Save 11%

Quick Details:

Products Status:Stock


Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex & Half-Duplex


Switch Capacity:19.2Gbps

Brand Name:H3C

Model Number:SMB-S1626

Place of Origin:Guangdong, China


Dimensions (W x D x H):440*173*44mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet (fiber)
ANSI / IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
Fixed port
24 10 / 100BASE-T self-negotiating Ethernet ports
Two 10/100 / 1000BASE-T auto-negotiation Ethernet ports (Combo port, electrical port priority)
1 Console port
24 10 / 100BASE-T self-negotiating Ethernet ports
Two 10/100 / 1000BASE-T auto-negotiation Ethernet ports (Combo port, electrical port priority)
1 Console
Ports 1 to 24 can provide remote power supply for devices connected to this port. The total power supply cannot exceed 154W, and
the maximum power supply capacity of a single port is 30W.
48 10 / 100BASE-T self-negotiating Ethernet ports
Two 10/100 / 1000BASE-T auto-negotiation Ethernet ports (Combo port, electrical port priority)
1 Console port
Optional port
Two 1000Base-SX / LX SFP optical ports
Fixed port attributes
Connector type: RJ-45
Supports half-duplex, full-duplex, auto-negotiation working modes
Support MDI / MDI-X adaptive
Optional port attributes
Connector type: LC
Support 1000Mbit / s transmission rate
Indicator light
Per port: Link / Act
Per device: Power
SFP port: Module Active
Exchange capacity
Forwarding ability
Exchange mode
Store and forward mode
MAC address table
Support automatic address learning and automatic aging (aging time is 5 minutes)
Maximum support MAC (Media Access Control) address: 8K
Dimensions (length × width × height)
440mm × 173mm × 44mm
With mounting ears, rack mountable
440mm × 238mm × 44mm
With mounting ears, rack mountable
Input voltage
100V~240V AC,50/60Hz
Power consumption
< 26W
Operating temperature
Working humidity
Cooling method
Passive heat sink
Safety features
S1626 / S1626-PWR supports quaternary (IP + MAC + PORT + VLAN) binding, S1650 supports ternary (IP + MAC + PORT) binding
Supports smart binding (one-click binding)
Support DHCP-Snooping
Support anti-ARP spoofing, support attack source location, ARP rate limit
Supports flow-based mirroring (ACL)
Support anti-DoS attack
Support anti-worm attack
Support ternary / quaternary binding script configuration
Support management VLAN
Supports two levels of user management and password protection for advanced users
Support black hole address
Supports anti-MAC address flood attack
Support port-based and MAC-based 802.1X
Support AAA authentication, Radius authentication
Support port isolation
Support port-based guest VLAN
Support MAC-based Guest VLAN (not supported by S1650)
Supports dynamic VLAN delivery
Supports up to 512 IEEE 802.1q compliant VLANs
Supports up to 26 (S1626 / S1626-PWR) or 50 (S1650) port-based VLANs
Priority Queue (QoS)
Support 802.1p, DSCP priority
Supports 4 priority queues per port
Support WRR, HQ-WRR queue scheduling
Support STP / RSTP
Support IGMP Snooping (Internet Group Management Protocol Snooping), S1626 / S1626-PWR supports up to 256 multicast groups, S1650
supports up to 512 multicast groups
Port security
Support 512 entries of static MAC address table / MAC address filtering table (512 entries are shared by static MAC address table
and MAC address filtering table)
Supports up to 512 port and MAC address binding entries (MAC address binding and static MAC addresses share 512 MAC entries)
Port aggregation
Support 6 groups of aggregation groups, each group has a maximum of 8 ports
Support manual and static LACP aggregation
Port mirroring
Supports port-based bidirectional mirroring
Port bandwidth control
Supports rate limiting of packet traffic to and from the port, with a granularity of 64Kbps
Support flow-based traffic rate limiting (ACL rate limiting)
Broadcast storm suppression
Support broadcast storm suppression based on bandwidth percentage on all ports
Equipment management
Web management
Supports management through the Console port
Support Telnet remote management
Support DHCP-client
Supports SNMP v2c and RMON
Support iMC
Equipment maintenance
Support debugging information output
Support configuration file import and export
Support Syslog (System Log)
Support Ping
Support backup upgrade
Support VCT (Cable Diagnostics)


Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.
