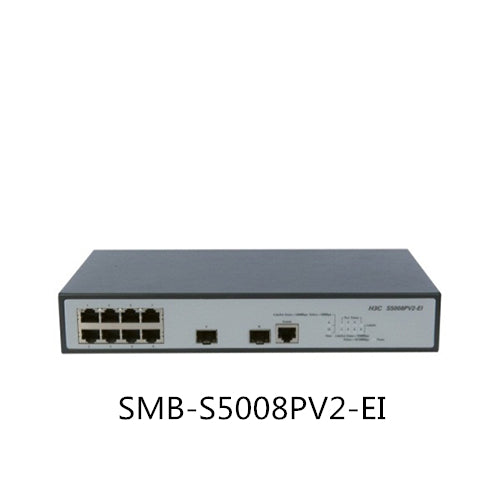

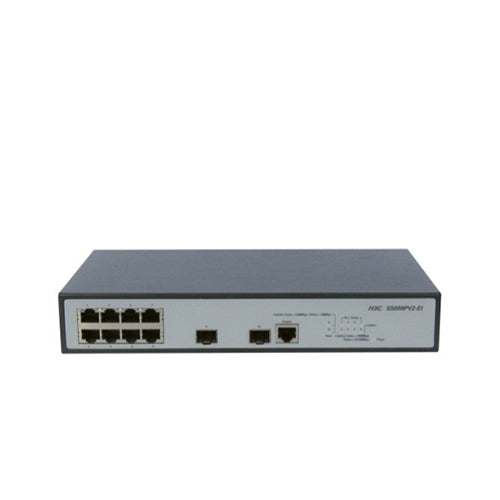

H3C SMB-S5008PV2-EI Ethernet Switch 8-port Full Gigabit Smart Enterprise Company Networking Network Switch
Quick Details:
Products Status:Stock
Ports:≤ 8
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex & Half-Duplex
Certification:RADIUS
Switch Capacity:192Gbps
Brand Name:H3C
Model Number:SMB-S5008PV2-EI
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H):266*162*44mm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
Attributes
|
S5008PV2-EI
|
S5016PV2-EI
|
S5024PV2-EI
|
S5024FV2-EI
|
S5048PV2-EI
|
Exchange capacity
|
192Gbps
|
240Gbps
|
|||
Packet forwarding rate
|
15Mpps
|
30Mpps
|
42Mpps
|
78Mpps
|
|
Management port
|
1 Console port
|
||||
Fixed port
|
8 * 10/100 / 1000Base-T Ethernet port
2 * 100/1000 Base-X SFP optical port |
16 * 10/100 / 1000Base-T Ethernet port
4 * 100/1000 Base-X SFP optical port |
24 * 10/100/1000 Base-T Ethernet port 4 * 100/1000 Base-X SFP optical port
|
2 * 10/100/1000 Base-T Ethernet port
26 * 100/1000 Base-X SFP optical port |
48 * 10/100 / 1000Base-T Ethernet port
4 * 100/1000 Base-X SFP optical port |
Electrical port attributes
|
Supports half-duplex, full-duplex, auto-negotiation working modes
Support MDI / MDI-X |
||||
Ethernet function
|
Support LLDP
Static MAC configuration Support MAC address learning limit (MAC address depth support up to 16K) Support port mirroring and flow mirroring Support port aggregation (aggregation group port maximum 8 ports) Support port isolation Support STP / RSTP / MSTP Support IEEE 802.3ad (dynamic link aggregation), static port aggregation |
||||
VLAN
|
Support 802.1Q (up to 4K VLANs)
Supports protocol-based VLAN Support IP subnet-based VLAN Support MAC-based VLAN Support GUEST VLAN |
||||
IP routing
|
Support static routing, RIP
|
||||
DHCP
|
Support DHCP Relay
Support DHCP Client Support DHCP Snooping Support DHCP Snooping Option82 |
||||
Multicast
|
Support IGMP V1 / V2 / V3 Snooping
|
||||
QoS
|
Support Diff-Serv QoS
Support queue scheduling mechanisms such as WRR / HQ-WRR Support 802.1p, DSCP priority mapping Supports bidirectional rate limiting on ports |
||||
ACL
|
Supports Layer 2, Layer 3, and Layer 4 ACLs
Support IPv4, IPv6 ACL Support VLAN ACL |
||||
IPv6
|
Support IPv6 static routing, dual protocol stack
Support DHCPv6 Client, DHCPv6 Snooping Support ND, PMTU Support IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution |
||||
Reliability
|
Support hot patch function, can carry out patch upgrade online
|
||||
Safety
|
Support user hierarchical management and password protection
Supports SSHv2, providing a secure encrypted channel for user login Support SSL to ensure data transmission security Support FTP login and password mechanism with controllable IP address Support to prevent ARP, unknown multicast packets, broadcast packets, unknown unicast packets, TTL = 1 packets, protocol packets and other attack functions Support anti-Dos attack Support MAC address restriction Support IP + MAC + PORT + VLAN binding function Supports IEEE 802.1x Support SAVI source address validity verification Support Radius, HWTACACS Supports secure network management SNMPv3 Support broadcast message suppression Support CPU anti-attack |
||||
System Management
|
Support Console / AUX Modem / Telnet / SSH2.0 command line configuration
Support FTP, TFTP, Xmodem, SFTP file download management Support SNMP V1 / V2c / V3 Support NTP clock Support system work log Supports cluster management |
||||
Ambient temperature
|
Operating environment temperature: 0 ℃ ~ 40 ℃
Storage environment temperature: -40 ℃ ~ 70 ℃ |
||||
Environment humidity
|
Operating environment humidity: 5% to 95% (non-condensing)
Storage environment humidity: 5% to 95% (non-condensing) |
||||
Environmental protection
|
China RoHs,、EEE
|
||||
Power consumption
|
≤ 9W
|
≤ 19W
|
≤ 19W
|
≤ 32W
|
≤ 32W
|
Weight (full configuration)
|
≤ 1kg
|
≤ 2.2kg
|
≤ 2.2kg
|
≤ 6.6kg
|
≤ 3.4kg
|
Input voltage
|
AC:100V~240V AC,50/60Hz;DC:220V
|
||||
Dimensions (length × width × height) (unit: mm)
|
266×162×44
|
440×173×44
|
440×173×44
|
440×400×44
|
440×238×44
|
