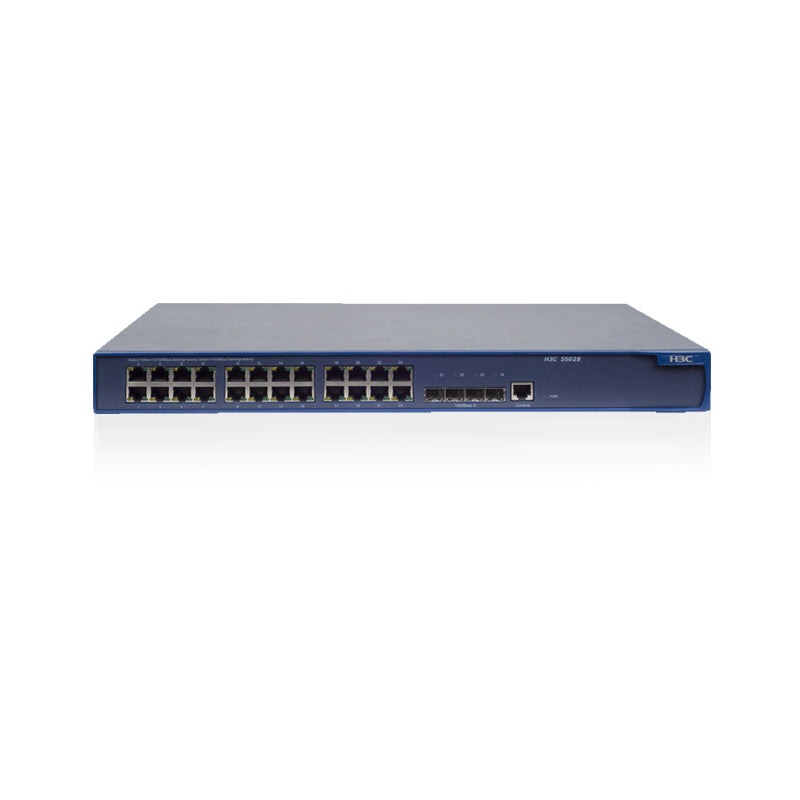

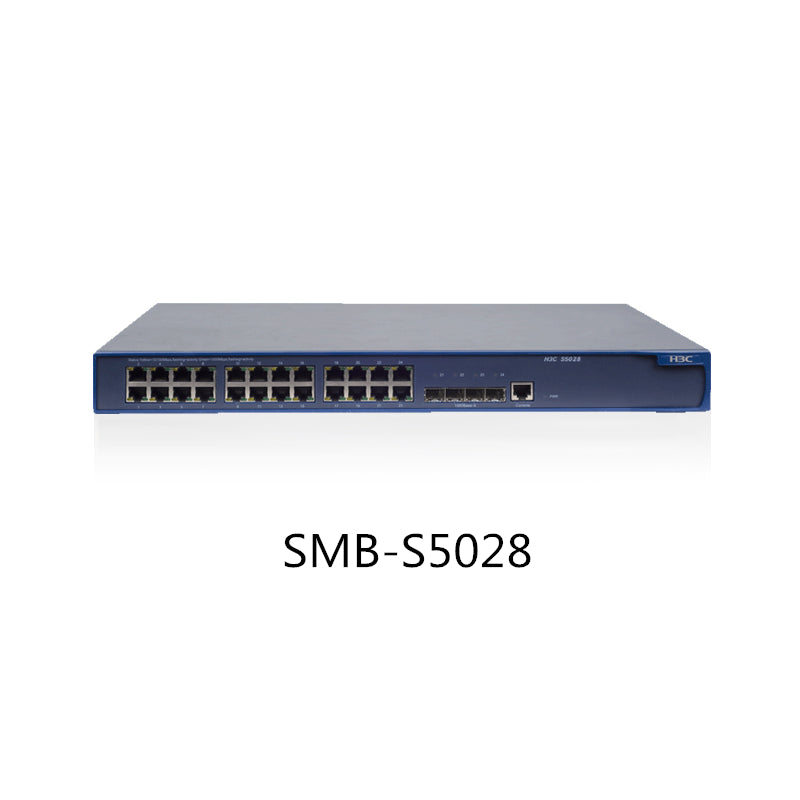

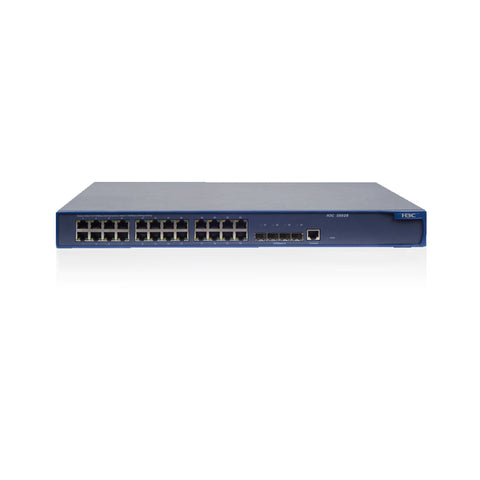

SMB-S5028-CN Ethernet Switch 24-port Full Gigabit Intelligent Security Network Management Switch


Quick Details:

Products Status:Stock


Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex & Half-Duplex


Switch Capacity:48Gbps

Brand Name:H3C

Model Number:SMB-S5028

Place of Origin:Guangdong, China


Dimensions (W x D x H):440*260*44 mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

Dimensions (W × D × H)
440×260×44 mm
Backplane bandwidth
Packet cache
Service port description
24 10/100 / 1000M Ethernet electrical ports
4 Gigabit SFP Combo ports
Management port
1 Console port
Input voltage
100V~240V AC,50/60Hz
Power consumption (at full load)
Cooling method
Active cooling, fan × 1
Working temperature
Working environment humidity
Storage temperature
Storage humidity
Safety features
Supports up to 380 IP + MAC + port + VLAN bindings
Support IP and MAC based ACL
Support DHCP-Snooping
Support anti-ARP spoofing
Support anti-DoS attack
Support anti-worm attack
Support quaternary binding script configuration
Support anti MAC address attack
Supports smart binding
Support management VLAN
Supports two levels of user management and password protection for advanced users
Support black hole address
Support port isolation
Support port-based and MAC-based 802.1X
VLAN (Virtual Local Area Network)
Supports up to 512 IEEE 802.1q compliant VLANs
Supports up to 24 port-based VLANs
QoS (Quality of Service)
Support 802.1p, DSCP priority
Supports 4 priority queues per port
Support WRR, HQ-WRR queue scheduling
Support STP / RSTP
Support broadcast storm suppression
Support port flow control, comply with 802.3x standards
Support 10 groups of aggregation groups, each group has a maximum of 8 ports
Support port-based mirroring and bidirectional mirroring
Support port priority
Support port packet traffic and type statistics
Supports rate limiting of packet traffic to and from the port, with a granularity of 64Kbps
Port security
Support 512 entries of static MAC address table / MAC address filtering table (512 entries are shared by static MAC address table
and MAC address filtering table)
Supports up to 512 port and MAC address binding entries (MAC address binding and static MAC addresses share 512 MAC entries)
MAC address table
Address learning
MAC (Media Access Control) address automatic aging time can be set (default is 300 seconds)
Supports up to MAC addresses: 8K
Support IGMP Snooping (IGMP v1 / v2)
Equipment management
Web management
Supports management through the Console port
Support Telnet remote management
Support DHCP-client
Support Internet cafes area intelligent setting
Support SNMP v1 / v2c, support RMON
Equipment maintenance
Support debugging information output
Support configuration file import and export
Support Syslog (System Log)
Support Ping
Support backup upgrade
Support VCT (Cable Diagnostics)

* Full-wire-speed Layer 2 Gigabit switching: The 48Gbps bus bandwidth provides Layer 2 Gigabit wire-speed switching capabilities for all ports of the switch, ensuring that all ports forward packets without blocking.

* Excellent security performance: The security zone provides a variety of rich security functions, which can realize the four elements of IP + MAC + port + VLAN binding, effectively prevent ARP attacks, DOS attacks, and worm attacks, and can easily implement quaternary binding configuration Import and export of files.

* Powerful link expansion capability: Provide LACP, which can effectively implement link expansion and backup.

* Intelligent port settings and inspections in the Internet cafe area: Provide intelligent port optimization settings for the cash register server, monitoring server, movie music server, game update server, file server, router, etc. connected to the switch, and provide intelligent check alarm functions.

* Simple and convenient management mode: You can use the web visual interface to perform simple and convenient operations on various functions of the switch, and provide console port and Telnet command line configuration, and support SNMP function.
