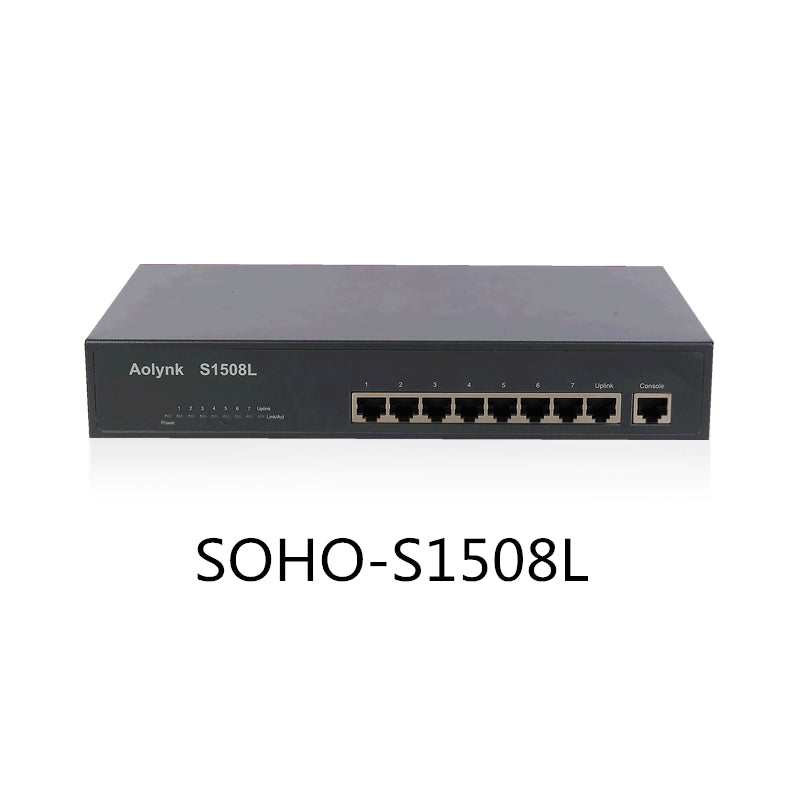

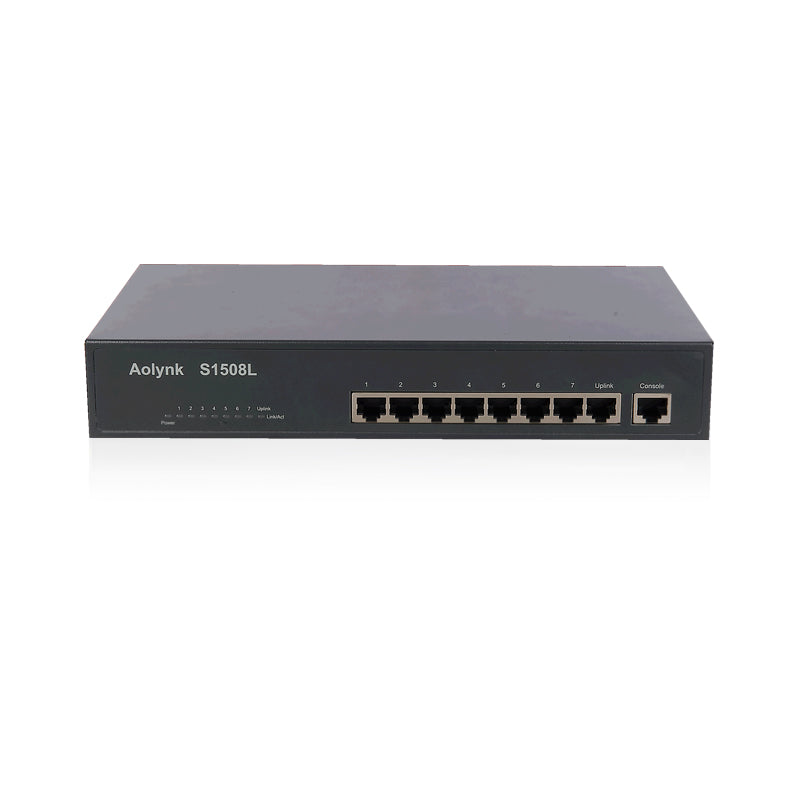

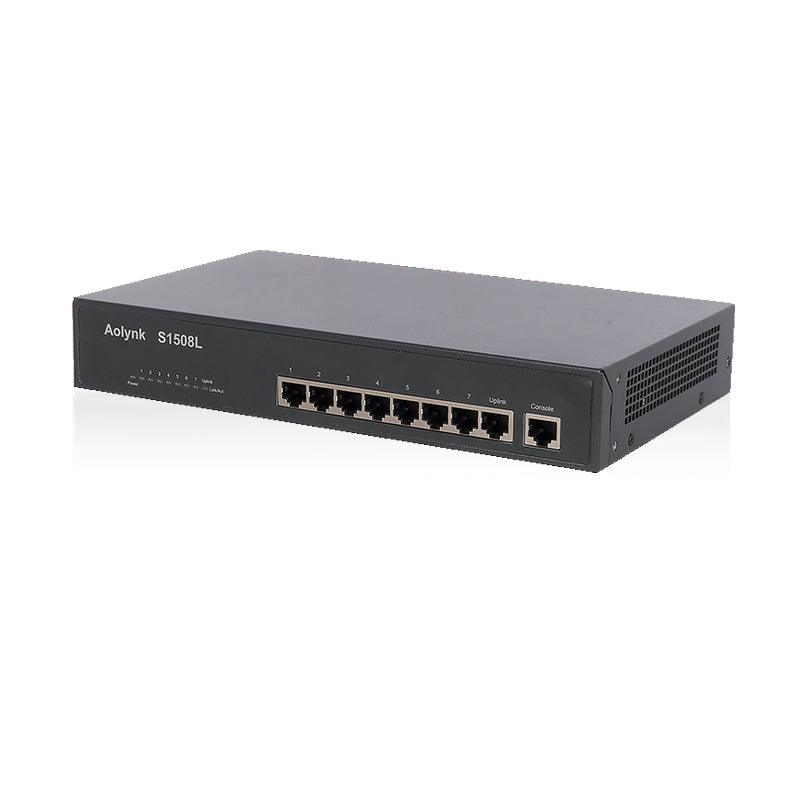

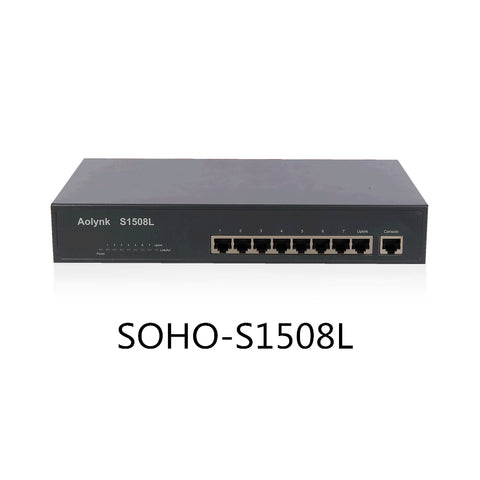

SOHO-S1508L Ethernet switch 8-port digital TV corridor wire speed intelligent with VLAN traffic limit switch


Quick Details:

Products Status:Stock

Ports:≤ 8

Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex & Half-Duplex


Switch Capacity:1.6Gbps

Brand Name:H3C

Model Number:SOHO-S1508L

Place of Origin:Guangdong, China


Dimensions (W x D x H):266*162*44mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

* Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standards

* Flow control method: Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard

* 8/16 10 / 100M adaptive RJ45 ports

* 1 Console configuration port (multiplexed with port 1)

* Support port auto flip (Auto MDI / MDIX)

* Supports uplink port lightning protection (meet secondary lightning protection requirements)

* Support fixed port VLAN

* Support port isolation

* Use store-and-forward switching mechanism

* All ports support wire-speed switching, and wire-speed can be reached in the range of 64 ~ 1536 frames.

* Support to modify the VLAN ID of the port through the console port configuration program

* No fan, natural heat dissipation

* Built-in universal power supply, 1U steel case, 11 inch iron case, industrial design, can be rack mounted

* Adopting shared cache architecture, the available buffer space of each port is expanded several times, which can greatly enhance the forwarding performance of sudden large traffic

* Integrated professional lightning protection circuit, can provide professional protection of lightning protection level 4 (common mode protection 7KV);

IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet
ANSI / IEEE 802.3 NWay auto-negotiation
IEEE802.3x flow control
Fixed port
Eight 10 / 100Base-TX adaptive Ethernet ports (one of which is an Uplink port)
1 console configuration port (multiplexed with port 1)
16 10 / 100Base-TX adaptive Ethernet ports (one of which is an Uplink port)
1 console configuration port (multiplexed with port 1)
Fixed port attributes
Connector type: RJ-45
Support 10 / 100Mbit / s transmission rate
Supports half-duplex, full-duplex, auto-negotiation working modes
Support MDI / MDI-X adaptive
Network cable type
3/4/5 category twisted pair cable, support a maximum transmission distance of 100m
Category 5 twisted pair cable, supporting a maximum transmission distance of 100m
Indicator light
Each port: Link / Act, Speed
Per device: Power
Backplane bandwidth
Forwarding ability
Exchange mode
Store and forward mode
MAC address table
Supports automatic address learning and aging (aging time is 300 seconds)
Support MAC (Medium Access Control) address: 8K
Dimensions (length × width × height)
Input voltage
100~240V AC,50/60Hz
Lightning protection
Common mode protection 7KV, lightning protection level 4
Power consumption
9 W
Operating temperature
Working humidity
Cooling method
Natural cooling
Port-based fixed VLAN
Support to modify the fixed VLAN ID of the port through the console configuration program
Support transparent transmission of VLAN Tag messages
Port isolation
Ports 1 to 7 are isolated from each other and can only communicate with port 8 respectively.
Ports 1 to 15 are isolated from each other and can only communicate with port 16 respectively.
