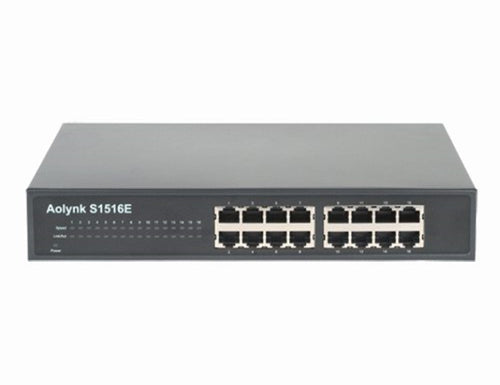

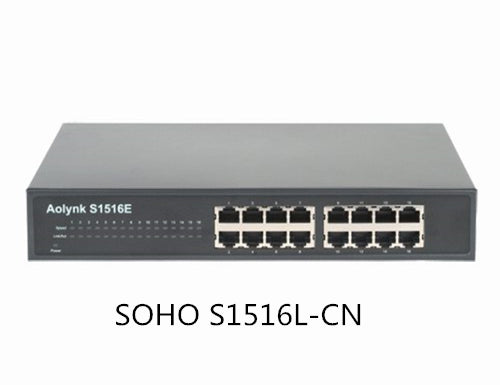

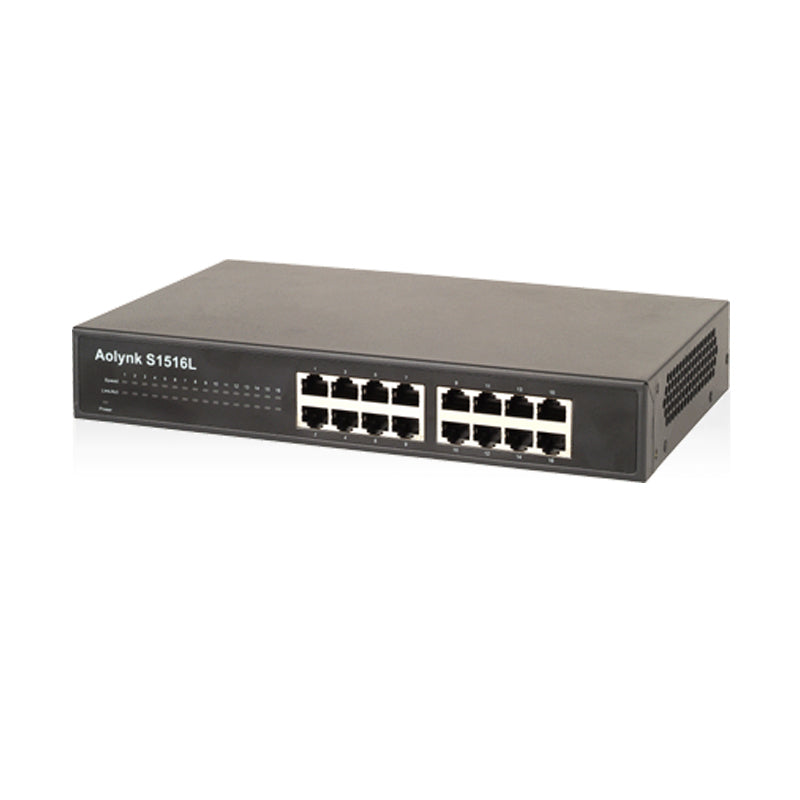

SOHO-S1516L Ethernet switch 16-port 100M intelligent corridor school with VLAN speed limit switch
Quick Details:
Products Status:Stock
Ports:16
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex & Half-Duplex
Certification:RADIUS
Switch Capacity:3.2Gbps
Brand Name:H3C
Model Number:SOHO S1516L-CN
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H):266*162*44mm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
Attributes
|
S1508L
|
S1516L
|
Standard
|
IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet IEEE802.1Q VLAN ANSI / IEEE 802.3 NWay auto-negotiation IEEE802.3x flow control |
|
Fixed port
|
Eight 10 / 100Base-TX adaptive Ethernet ports (one of which is an Uplink port)
1 console configuration port (multiplexed with port 1) |
16 10 / 100Base-TX adaptive Ethernet ports (one of which is an Uplink port)
1 console configuration port (multiplexed with port 1) |
Fixed port attributes
|
Connector type: RJ-45
Support 10 / 100Mbit / s transmission rate Supports half-duplex, full-duplex, auto-negotiation working modes Support MDI / MDI-X adaptive |
|
Network cable type
|
10Base-T:
3/4/5 category twisted pair cable, support a maximum transmission distance of 100m 100Base-TX: Category 5 twisted pair cable, supporting a maximum transmission distance of 100m |
|
Indicator light
|
Each port: Link / Act, Speed
Per device: Power |
|
Backplane bandwidth
|
1.6Gbps
|
3.2Gbps
|
Forwarding ability
|
1.19Mpps
|
2.38Mpps
|
Exchange mode
|
Store and forward mode
|
|
MAC address table
|
Supports automatic address learning and aging (aging time is 300 seconds)
Support MAC (Medium Access Control) address: 8K |
|
Dimensions (length × width × height)
|
266mm×162mm×44mm
|
|
Input voltage
|
100~240V AC,50/60Hz
|
|
Lightning protection
|
Common mode protection 7KV, lightning protection level 4
|
|
Power consumption
|
9 W
|
|
Operating temperature
|
0℃~40℃
|
|
Working humidity
|
5%~95%
|
|
Cooling method
|
Natural cooling
|
|
VLAN
|
Port-based fixed VLAN
Support to modify the fixed VLAN ID of the port through the console configuration program Support transparent transmission of VLAN Tag messages |
|
Port isolation
|
Ports 1 to 7 are isolated from each other and can only communicate with port 8 respectively.
|
Ports 1 to 15 are isolated from each other and can only communicate with port 16 respectively.
|
