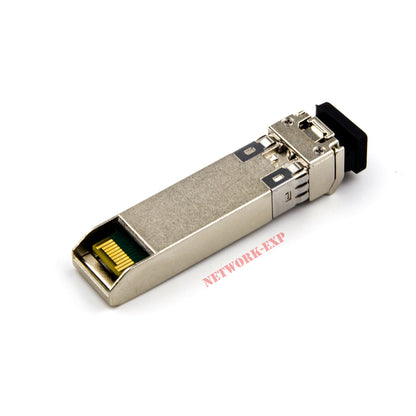

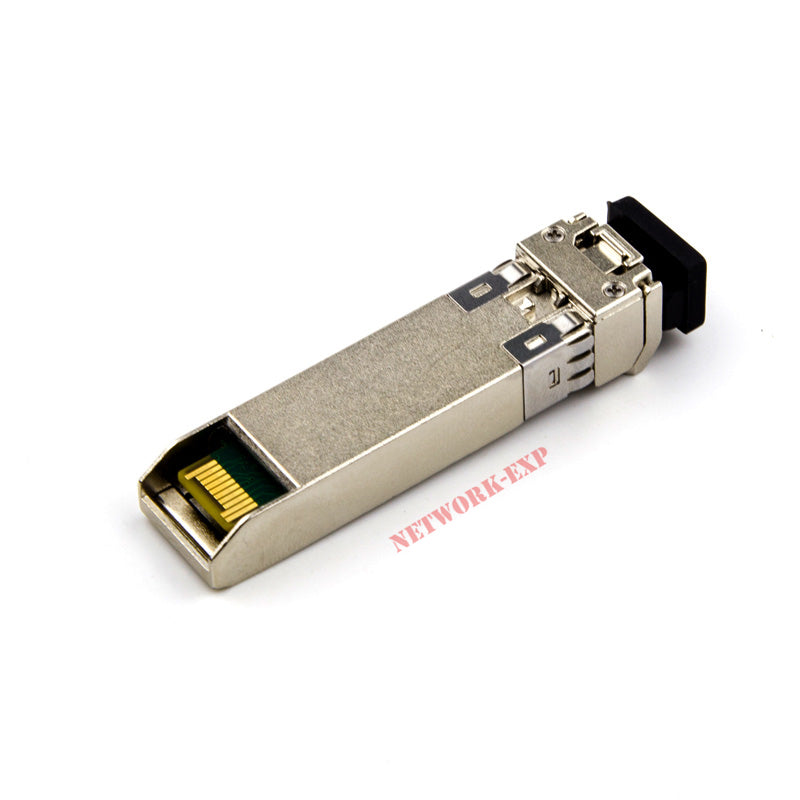

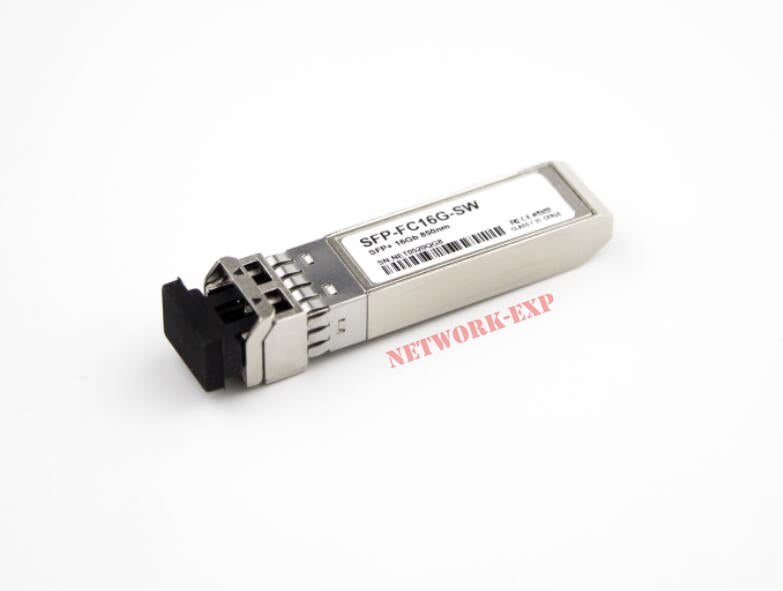

QK724A Compatible 16G SFP+ SW Transceivers for Fiber Channel

Feature

• Up to 14.025 Gb/s bi-directional data links
• Hot-pluggable SFP+ footprint
• Built-in digital diagnostic functions
• Built-in CDR with shut off control
• 850nm Oxide VCSEL laser transmitter
• Duplex LC connector
• RoHS compliant and Lead Free
• 35m on 50/125um MMF
• 100m on high-bandwidth 50/125um (OM3)
• Metal enclosure, for lower EMI
• Single 3.3V power supply
• Operating temperature range:0°C to 70°C

[qiege]

 Overview

HP Qk724A Compatible 16G SFP+ SW Transceivers for Fiber Channel

Neme’s 16G SW SFP+ transceivers are designed for use in Fiber Channel links up to 14.025
Gb/s data rate over multimode fiber. They are compliant with FC-PI-5 Rev. 6.00a, SFF-8472 Rev 11.0c and SFF-8081h, and compatible with SFF-8432b and applicable portions of SFF-8431 Rev. 4.1d.The optical transceiver is compliant per the RoHS.

Applications
. Tri-Rate 14.025 Gb/s Fiber Channel
. Other optical links

Standard
. Electrical interface compliant to SFF-8431
. Compliant with SFF-8472 Rev 10.2
. Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
. RoHS Compliant
