AC6003-8-8AP AC6005-8-8AP Wireless Access Controller
AC6003-8-8AP AC6005-8-8AP Wireless Access Controller
Couldn't load pickup availability
Feature
- Support 10M, 100M, 1000M Ethernet interface and auto-negotiation speed
- Support Access, Trunk, Hybrid access
- Support IPv4 IPv6 Forwarding
- Supports MAC or SN of the AP whitelist
- Support AP domain and configuration management
- Support RF, WLAN management
[qiege]
Overview

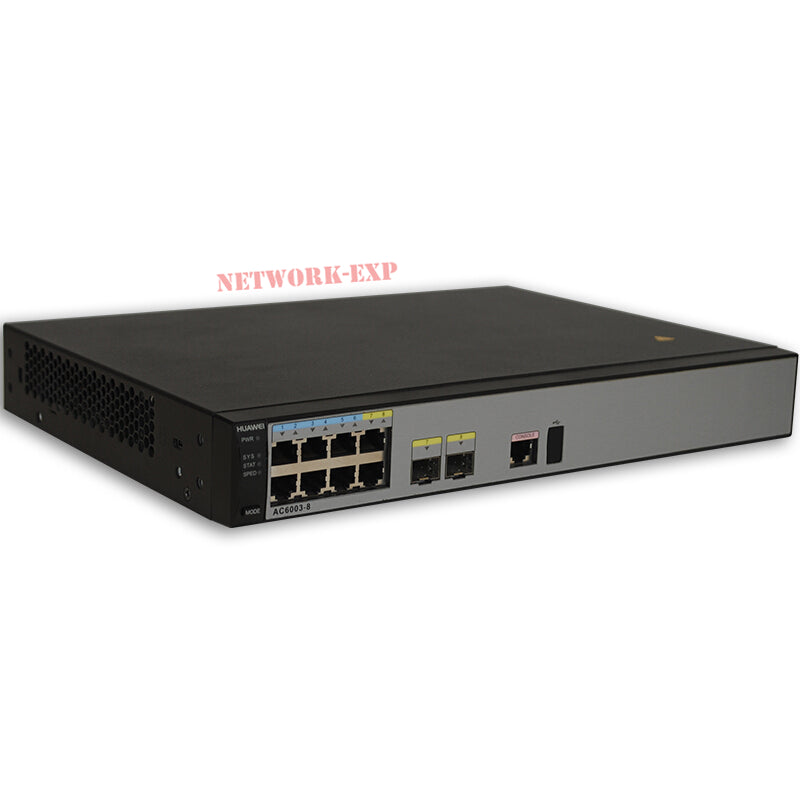

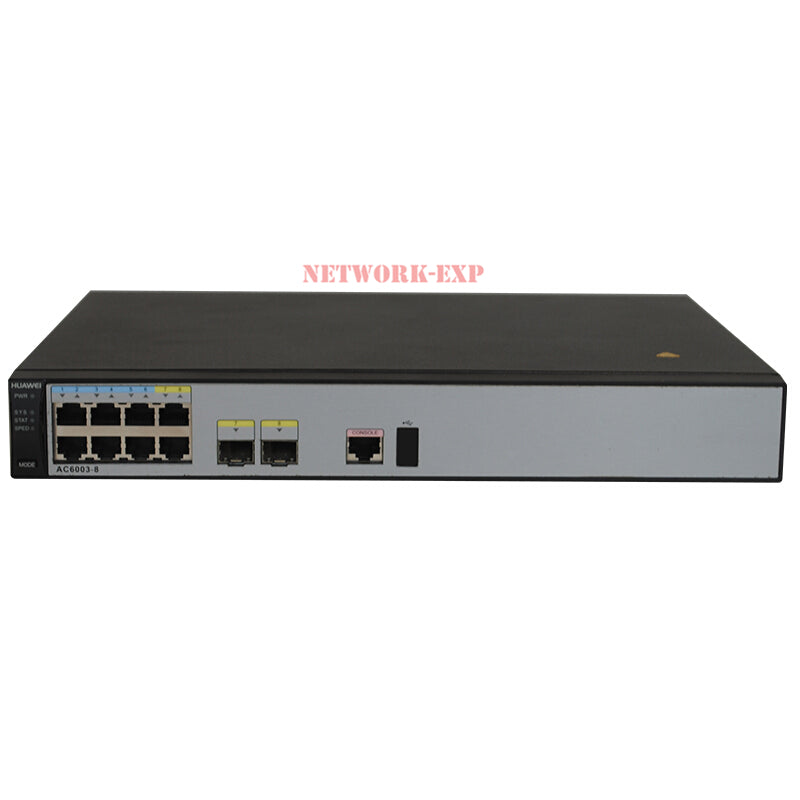

HUAWEI AC6003-8-8AP wireless access controller
AC6003-8 series products are small box wireless Access controller (Access controller) launched by huawei for small and medium-sized enterprises, which can manage up to 48 AP. Meanwhile, it integrates the function of gigabit Ethernet switch to realize wired wireless integrated Access mode.The management quantity of wireless access points can be configured flexibly with good scalability.With huawei's full series of 802.11n/802.11ac wireless access points, small and medium-sized campus network, enterprise office network, wireless metropolitan network, hot spot coverage and other application environments can be established.
Table 1 shows the Quick Specs.
|
Product Code |
AC6003-8-8AP |
|
Ports |
6 x GE + 2 x GE Combo |
|
Power Supply |
AC |
|
Forwarding Capability |
2 Gbit/s |
|
Maximum Number of Managed APs |
48 |
|
Maximum Number of Access Users |
1K |
|
AP-AC Networking |
Layer 2 or Layer 3 networking |
|
Forwarding Modes |
Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding) |
|
AC Active/Standby Mode |
1+1 HSB or N+1 backup |
|
Dimensions (W x D x H) |
320 mm x 233.6 mm x 43.6 mm |
|
Net Weight |
2.9 kg |

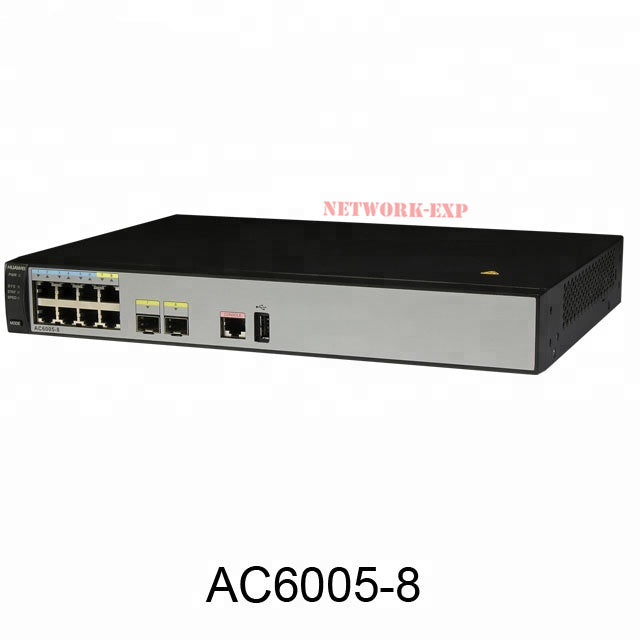

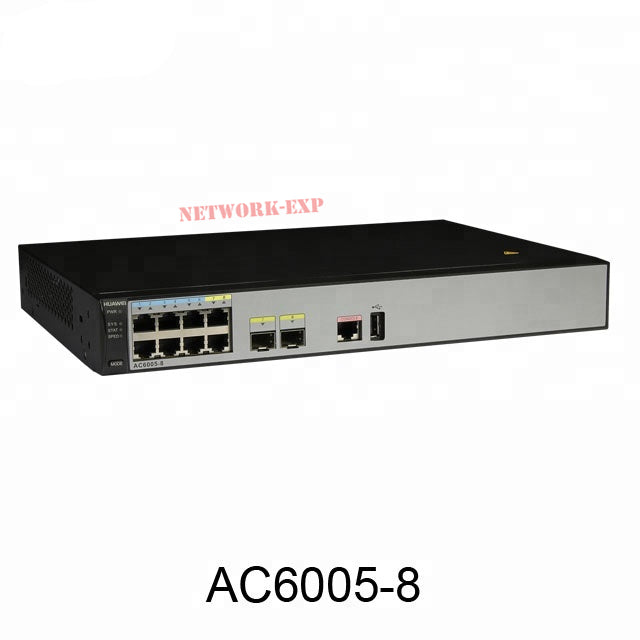

Table 2 shows the comparison of AC6005-8-8AP and AC6005-8-PWR-8AP.
|
Models |
||
|
PoE Available |
No |
Yes, it supports PoE power supply on six ports. |
|
Ports |
6 x GE + 2 x GE Combo |
6 x GE + 2 x GE Combo |
|
Power Supply |
AC |
AC |
|
Forwarding Capability |
4 Gbit/s |
4 Gbit/s |
