AP4050DN AP3010DN-V2 AP5030DN-S Dual-band Wireless Ceiling Access Point
AP4050DN AP3010DN-V2 AP5030DN-S Dual-band Wireless Ceiling Access Point
Couldn't load pickup availability
Feature
-
Model Number: AP3010DN-V2
-
Compatible with IEEE 802.11a/b/g/n standard, dual-band 2.4GHz and 5GHz
-
Support 2 x 2 MIMO, dual rates up to 600Mbps
-
Signal enhancement design, coverage doubled
-
Maximum number of users could reach to 256, super user access capability
-
Built-in antenna (2.4G: 4dBi / 5G: 6dBi)
-
Maximum transmit power: 23dBm (combined power)
-
Operating temperature and altitude: 0 ℃ ~ + 45 ℃/ -60m ~ + 5000m
-
Storage temperature: -40 ℃ ~ + 70 ℃
-
Waterproof level: IP41
-
Working pressure: 70kPa ~ 106kPa
-
Working humidity: 5% to 95% (non-condensing)
-
POE power supply: -48V DC, to meet the 802.3at Power over Ethernet standard
-
Dimensions (length × width × height): 180mm × 180mm × 39.5mm
-
Maximum power consumption: 10.2W (Note: The actual maximum power consumption in accordance with regulations of different countries and regions vary.)
[qiege]
Overview

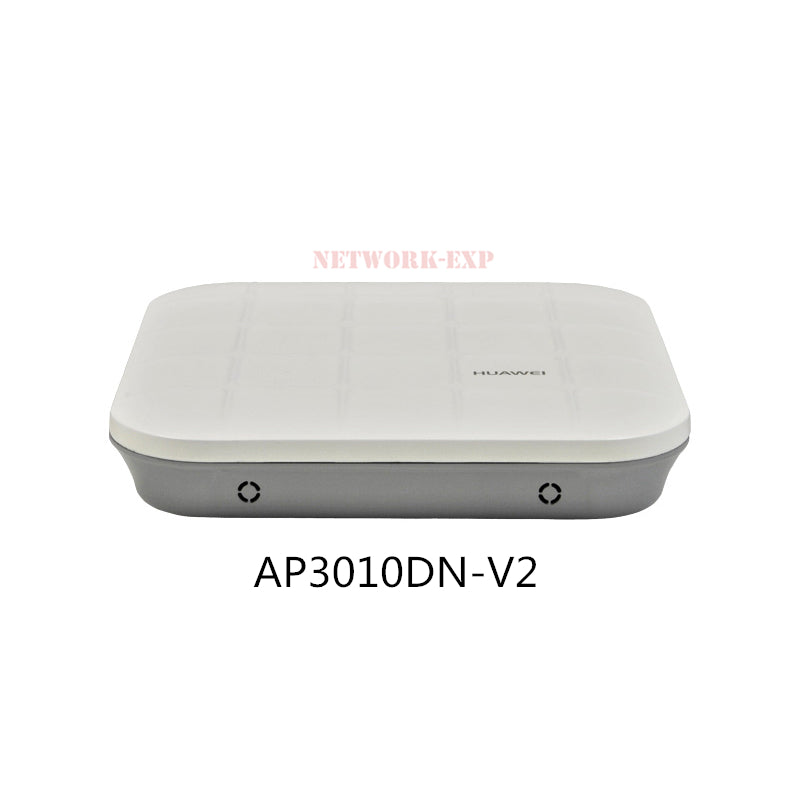

Huawei AP3010DN-V2 Wireless Indoor Access Point AP
AP3010DN-V2 is an economical 802.11n/ac product launched by huawei, which is beautiful and practical, and suitable for deployment in small and medium-sized enterprises, coffee shops, leisure centers and other business environments.
Table 1 shows the quick specs.
|
Product Number |
AP3010DN-V2 |
|
Dimensions (length width height) |
180mm x 180mm x 39.5mm |
|
Mains input |
DC 12 v + / - 10% POE power supply: -48v DC Meet 802.3af/at Ethernet power supply standard |
|
Maximum power consumption |
10.2W |
|
Operating temperature |
0℃~+45℃ |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 6 dBi |
|
Maximum Number of Users |
≤128 |
|
Maximum Transmit Power |
23 dBm (combined power) |
|
MIMO: Spatial Streams |
2×2:2 |
|
Radio Protocol |
802.11a/b/g/n/ac |
|
Maximum Speed |
1.167Gbps |
|
Net weight |
0.4kg |
Table 2 shows the comparison of AP5030DN-S and AP4030DN.
|
Model |
||
|
Dimensions (length width height) |
220mm×220mm×53mm |
180mm×180mm×39.5mm |
|
Mains input |
DC 12 v + / - 10% POE power supply: -48v DC Meet 802.3af/at Ethernet power supply standard |
DC 12 v + / - 10% POE power supply: -48v DC Meet 802.3af/at Ethernet power supply standard |
|
Maximum power consumption |
12.95W |
10.2W |
|
Operating temperature |
-10℃~+50℃ |
-10℃~+50℃ |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 6 dBi |
|
Maximum Number of Users |
≤ 256 |
≤256 |
|
Maximum Transmit Power |
25 dBm (combined power) |
23 dBm (combined power) |
|
MIMO: Spatial Streams |
3 x 3:3 |
2×2:2 |
|
Radio Protocol |
802.11a/b/g/n/ac |
802.11a/b/g/n/ac |
|
Maximum Speed |
1.75 Gbps |
1.167Gbps |
|
Net weight |
1.0 kg |
0.4 kg |
