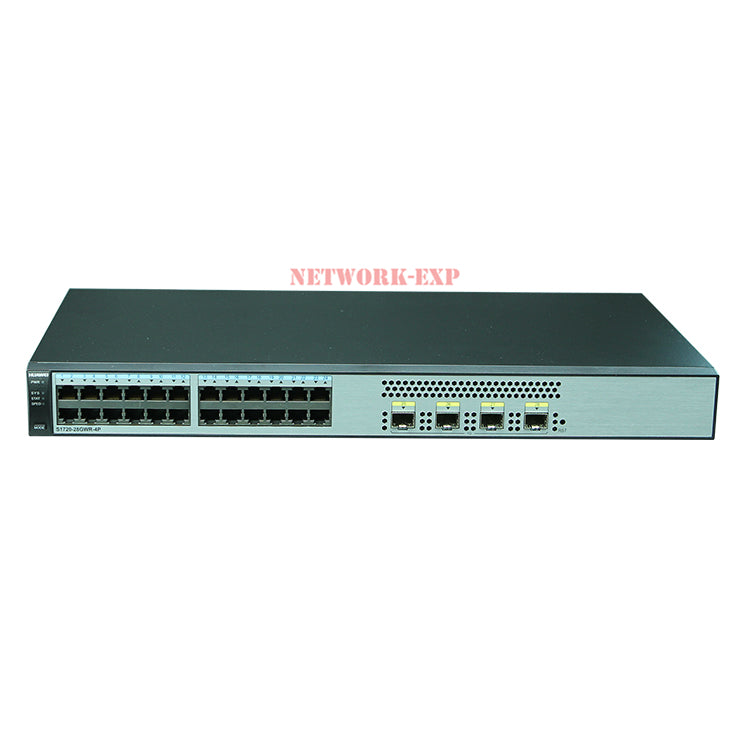

S1720-28GWR-4P 24 full gigabit network tube switches
S1720-28GWR-4P 24 full gigabit network tube switches
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Unit price
per
Couldn't load pickup availability
Feature
-
Next-generation, energy-saving Ethernet access switches for small to medium-sized businesses, hotels, schools, and Internet cafes.
-
Advanced hardware design optimizes bandwidth utilization and supports easy expansion from a single access switch into tree, star, or ring networks as needs change. Available in a broad range of unmanaged and SNMP- or web-managed versions, providing from 8 to 48 downstream ports per switch.
-
Easy to install and maintain, Huawei S1700 Switches combine high reliability with rich management and security features to help customers build secure, reliable, high-performance networks.
[qiege]
Overview
| Product Model | S1720-10GW-2P S1720-10GW-PWR-2P |
S1720-28GWR-4P S1720-28GWR-PWR-4P S1720-28GWR-PWR-4TP S1720-28GWR-4X S1720-28GWR-PWR-4X |
S1720-52GWR-4P S1720-52GWR-PWR-4P S1720-52GWR-4X S1720-52GWR-PWR-4X |
| Device Management |
Web system network management DHCP client One-key restoration Note: You can upgrade the web-managed S1720 model to the web/SNMP-managed model by purchasing a license |
||
| Switching Capacity | 68 Gbit/s | S1720-28GWR-P/TP series: 68 Gbit/s S1720-28GWR-X series: 168 Gbit/s |
336 Gbit/s |
| Forwarding Performance | 15 Mpps | S1720-28GWR-P/TP series: 42 Mpps S1720-28GWR-X series: 96 Mpps |
S1720-52GWR-P series: 78 Mpps S1720-52GWR-X series: 132 Mpps |
| Fixed Ports | Downlink: 8 x 10/100/1,000 Base-T electrical ports Uplink: 2 x 1,000 Base-X optical ports |
S1720-28GWR-P series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-28GWR-TP series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports, 2 of which are 10/100/1,000 Base-T combo ports S1720-28GWR-X series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports |
S1720-52GWR-P series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-52GWR-X series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports |
| VLAN Features | 256 VLANs (S1720 Series: 4K) Access port Trunk port Hybrid port Management VLAN Voice VLAN |
||
| IP Routing | IPv4 and IPv6 static routing | ||
| Device Maintenance | System log Ping Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) |
||
