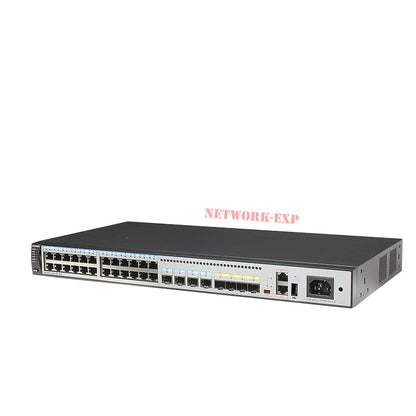

S5720-32P-EI-AC Enterprise-class 24-port All-Gigabit-8 Optical Port Three-Layer Core Switch

S5720-32P-EI-AC Enterprise-class 24-port All-Gigabit-8 Optical Port Three-Layer Core Switch

$1,000.00 USD
$1,000.00 USD
Sale Sold out

Feature

  • Easy operation and maintenance

  • Powerful service processing, QoS, and security features

  • Flexible Ethernet networking

  • Intelligent iStack virtualization and clustering

  • Mature IPv6 technologies for next-generation networking

[qiege]

 Overview

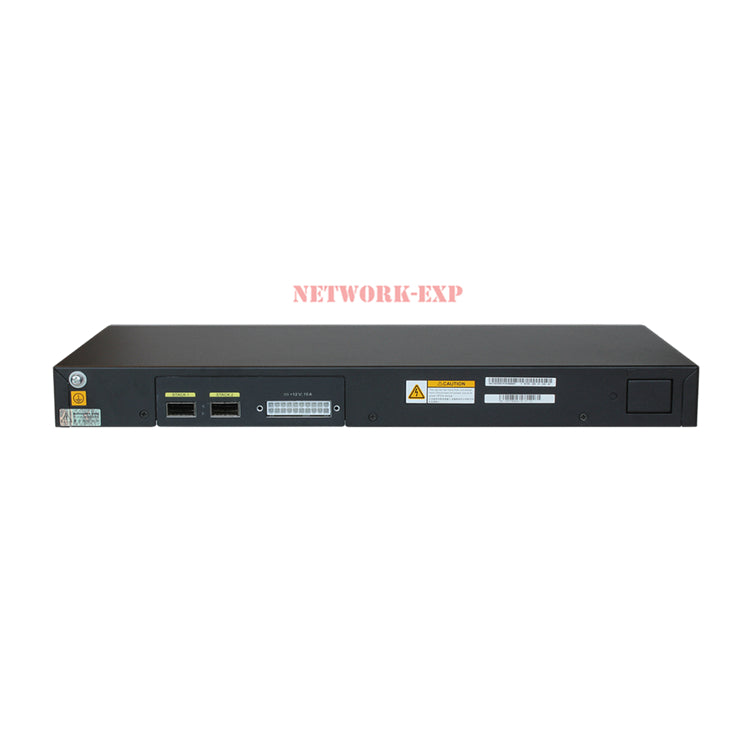

Huawei S5720-32P-EI-AC supports twenty-four Ethernet 10/100/1000 ports and eight Gig SFP. There are two QSFP+ stack
optical ports on the back panel.

Product Code

S5720-32P-EI-AC

Downlink Ports

24 × Ethernet 10/100/1000 ports

Uplink Interfaces

8 × Gig SFP

Forwarding Performance

48 Mpps

Switching Capacity

598 Gbit/s

Stack

Supported

Stack Ports

Two fixed QSFP+ stack ports on the rear card

Memory (RAM)

2 GB

Flash

340 MB

Dimensions (W x D x H)

44.2 cm x 22 cm x 4.36 cm

Weight (Kg)

4.44 Kg



Note:

1

24 × 10/100/1000BASE-T ports

6

One USB port

2

4 × 100/1000BASE-X ports

7

AC socket

3

4 × 1000BASE-X ports

8

Jack for AC terminal locking latch

4

One mini USB port

9

One console port

5

One ETH management port
