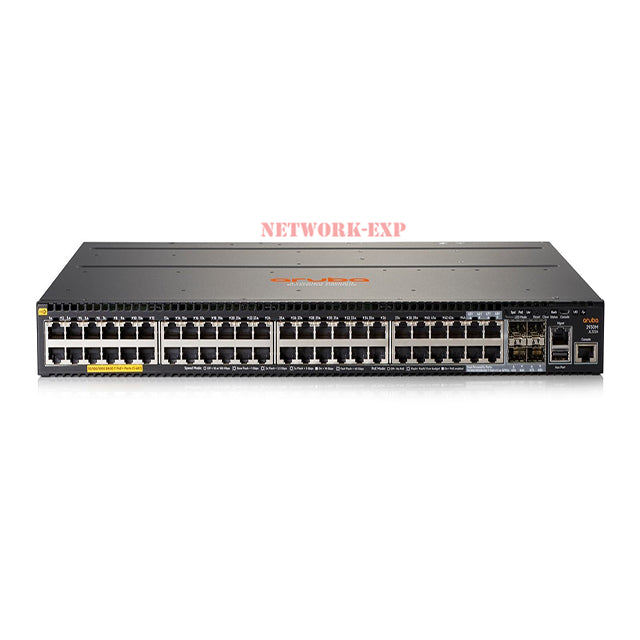

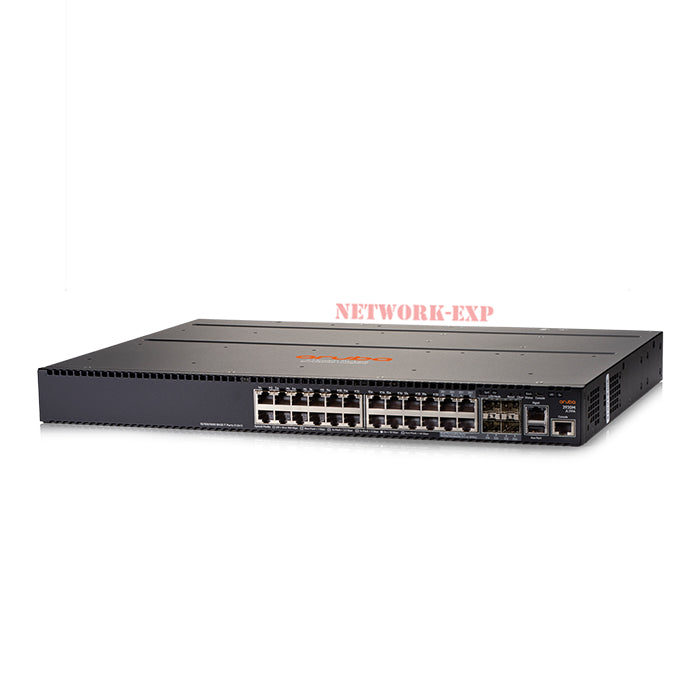

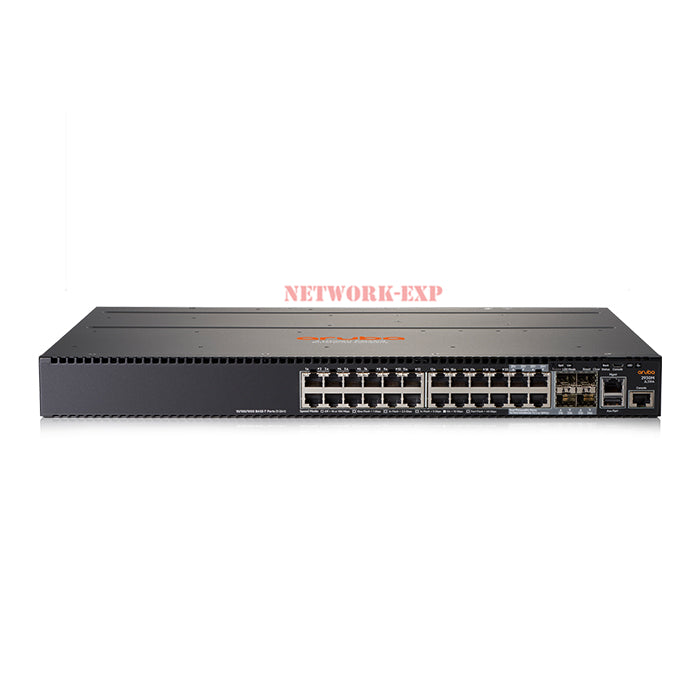

JL322A JL323A Aruba 2930M 48G PoE+ 1-slot Switch:HPE Aruba 2930M Campus Switch

Feature

• 1 Dual Personality (RJ-45 or USB Micro-B) serial console port
• 1 USB B port for uploading/ downloading files
• 1 100BASE-T Out of Band Management Port
• 1 Uplink Slot
• 1 Stacking Module Slot
• 2 Power Supply Slots (power supplies not included)
• See datasheet for the list of modules and accessories

[qiege]

 Overview

802.11ac-ready wired network

Multi-gigabit Ethernet with PoE+ for high speed 802.11ac APs using existing cabling.

Power and performance

10 chassis stacking, 40GbE uplinks, up to 1440W PoE+ and up to 24 Smart Rate ports.

Simple deployment

With Zero Touch Provisioning and support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support.

Specification

• 48G PoE+ 1-slot Switch (JL322A):
  • 44 Auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3 u Type 100 BASE TX, IEEE 802.3 ab Type 1000 Base-T, IEEE 802.3 at PoE+)
  • 4 Combo 10/100/1000 BASE-T or 100/1000 Mbps SFP Ports
• 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL323A):
  • 36 Auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3 u Type 100 BASE TX, IEEE 802.3 ab Type 1000 Base-T PoE+)
  • 8 802.3 bz 1/2.5/5 and 10G BASE-T copper PoE+ ports
  • 4 Combo 10/100/1000 BASE-T or 100/1000 Mbps SFP Ports

ENVIRONMENTAL

• Operating temperature:
  • 32F to 131F (0C to 55C) up to 5000ft, 32F to 122F (0C to 50C)
  • Derate -1C for every 1000 ft from 5000 ft to 10000 ft
• Operating Relative Humidity: 15% to 95%, (non-condensing) 10,000 ft
• Non-Operating/ Storage Temperature: -40C to +70C up to 15000 ft
• Non-Operating/ Storage Relative Humidity: 90% at 65C (non-condensing); 15,000 ft
• Acoustic: See data sheet
• Primary Airflow Direction: Port to power
