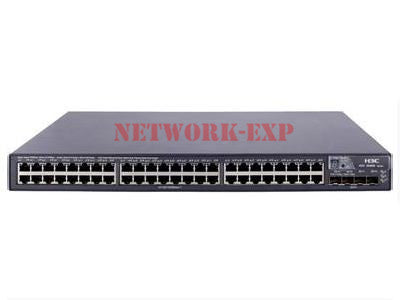

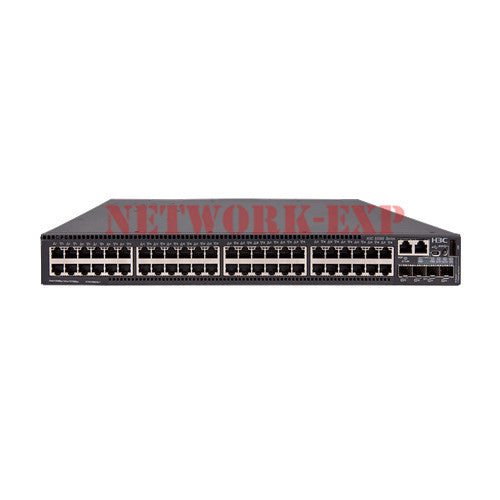

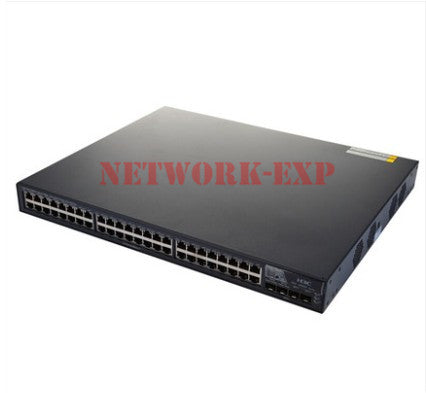

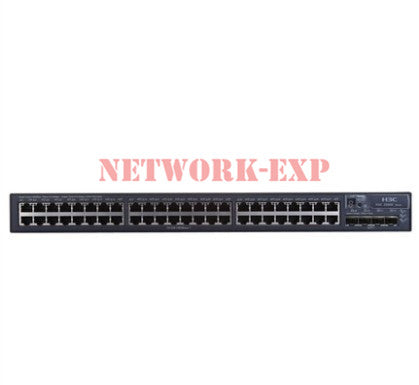

LS-5800-56C-H3 Series Switches

Dimensions (H × W × D)

86.1 × 440 × 465 mm (3.39 × 17.32 × 18.31 in.)

43.6 × 440 × 367 mm (1.72 × 17.32 × 14.45 in.)

43.6 × 440 × 427 mm (1.72 × 17.32 × 16.81 in.)

43.6 × 440 × 367 mm (1.72 × 17.32 × 14.45 in.)

43.6 × 440 × 427 mm (1.72 × 17.32 × 16.81 in.)

43.6 × 440 × 427 mm (1.72 × 17.32 × 16.81 in.)

Weight

Ÿ 18 kg (39.68 lb)

Ÿ 6.5 kg (14.33 lb)

Ÿ 8.5 kg (18.74 lb)

Ÿ 6.0 kg (13.23 lb)

Ÿ 8 kg (17.64 lb)

Ÿ 8.5 kg (18.74 lb)

Console port

The console port of the S5800-60C-PWR, S5800-32C or S5800-32C-PWR is available on the front panel.

The console port of the S5800-56C, S5800-56C-PWR or S5800-32F is available under the logo panel on the front panel.

Switching Capacity

360 Gbps

Port Switching Capacity

284Gbps

256Gbps

208 Gbps

Forwarding Speed

213Mpps

192Mpps

156Mpps

Management Ethernet port

—

—

—

—

—

1, on the rear panel

USB interface

1 (full speed)

The USB interface of the S5800-60C-PWR, S5800-32C or S5800-32C-PWR is available on the front panel.

The USB interface of the S5800-56C, S5800-56C-PWR or S5800-32F is available under the logo panel on the front panel.

10/100/1000Base-T Ethernet port

48

Supports PoE

48

48

Supports PoE

24

24

Supports PoE

—

100/1000Base-X SFP interface

4

—

—

—

—

24

Expansion slot

3

1

Interface card models supported (optional)

LSW1SP4P0 (provides four 1 Gbps/10 Gbps SFP+ interfaces, which can be used to connect IRF member devices)

LSW1SP2P0 (provides two 1 Gbps/10 Gbps SFP+ interfaces, which can be used to connect IRF member devices)

LSW1XP4P0 (provides four 10 Gbps XFP optical interfaces, which can be used to connect IRF member devices)

LSW1XP2P0 (provides two 10 Gbps XFP optical interfaces, which can be used to connect IRF member devices)

LSW1GP16P0 (provides sixteen 1000 Mbps SFP interfaces)

LSW1GT16P (provides sixteen 1000 Mbps Ethernet electrical interfaces)

OAP card

IPS card

Firewall card

WLAN controller modul

WLAN controller module

Hot swappable PoE module

LSW148POEM

—

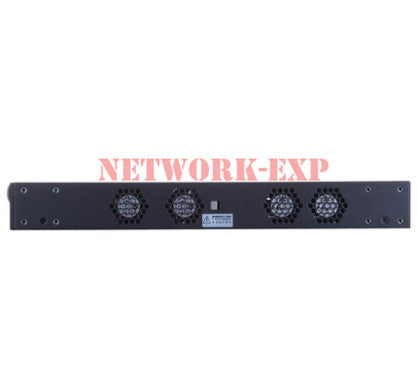

Fan

Hot swappable fan tray (LSW1FAN)

Fixed fans

Fixed fans

Fixed fans

Fixed fans

Hot swappable fan tray (LSW1BFAN)

Hot swappable power module models supported

PSR300-12A

PSR300-12D1

PSR750-A

PSR750-D

—

—

—

—

PSR150-A

PSR150-D

RPS power module models supported

RPS1600-A

RPS800-A

RPS1600-A

RPS800-A

RPS1600-A

RPS800-A

Input voltage

AC

Rated voltage: 100 VAC to 240 VAC, 50/60 Hz

Max voltage: 90 VAC to 264 VAC, 47/63 Hz

DC

Rated voltage:

300 W DC: –48 VDC to –60 VDC

750 W DC: –54 VDC to –57 VDC

—

—

—

—

Rated voltage: –48 VDC to –60 VDC

RPS

Rated voltage: –52 VDC to –55 VDC

Rated voltage: 10.8 VDC to 13.2 VDC

Rated voltage: –52 VDC to –55 VDC

Rated voltage: 10.8 VDC to 13.2 VDC

Rated voltage: –52 VDC to –55 VDC

Rated voltage: –52 VDC to –55 VDC

Power consumption

DC: 94 W

AC: 96 W

102 W

DC: 107 W

AC: 131 W

67 W

DC: 64 W

AC: 85 W

DC: 58 W

AC: 67 W

Power consumption (full configuration)

Single DC output: 1840 W (1500 W for PoE output)

Dual DC outputs: 1828 W (1500 W for PoE output)

Single AC output: 714 W (370 W for PoE output)

Dual AC outputs: 1147 W (740 W for PoE output)

163 W

DC: 973 W (740 W for PoE output)

AC: 673 W (370 W for PoE output)

105 W

DC: 870 W (740 W for PoE output)

AC: 598 W (370 W for PoE output)

DC: 136 W

AC: 146 W

Operating temperature

0°C to 45°C (32°F to 113°F)

Operating humidity (noncondensing)

10% to 90%
