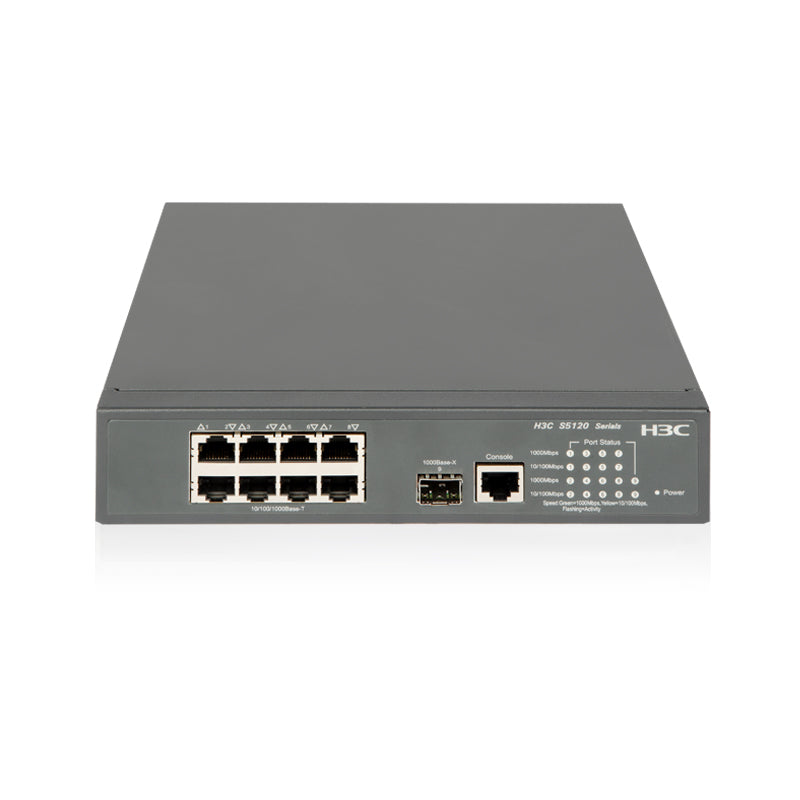

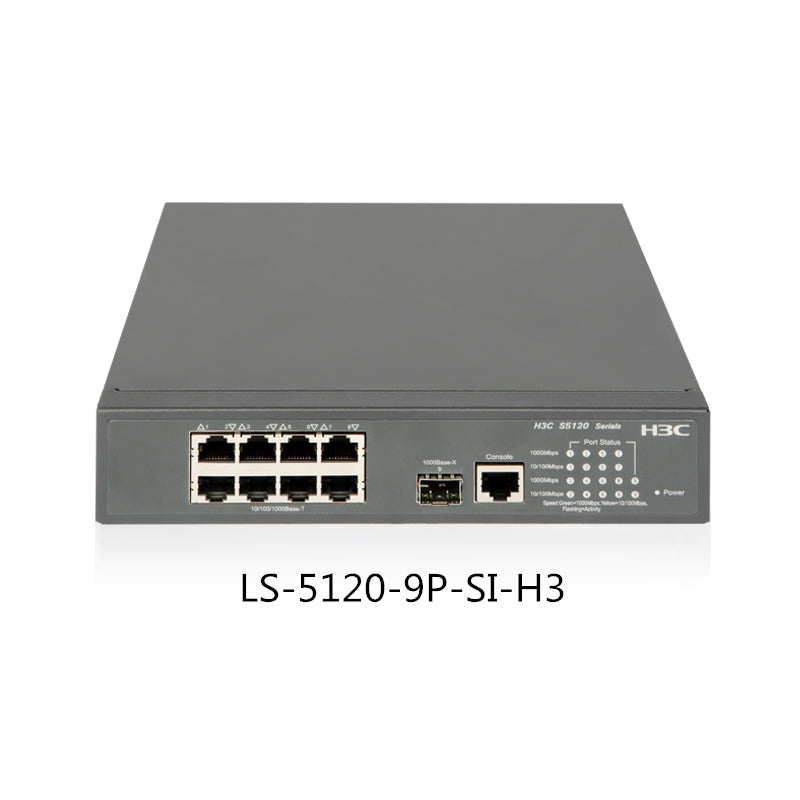

LS-S5120-9P-SI Ethernet Switch H3C 9-Port Gigabit Ethernet VLAN Traffic Intelligent Management Switch

Save 25%
$800.00
$600.00
SKU LS-5120-9P-SI-H3

Quick Details:

Products Status:Stock

Ports:9

Transmission Rate:10/100/1000Mbps

Function:QoS

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:256Gbps

Brand Name:H3C

Model Number:LS-5120-9P-SI-H3

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):210*210*43.6

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

Support features
S5120-9P-SI
S5120-20P-SI
S5120-28P-SI
S5120-52P-SI
Dimensions (length × width × height)
(Unit: mm)
210×210×43.6
440×160×43.6
440×160×43.6
440×260×43.6
weight
≤2kg
<3kg
<3kg
<5kg
Management port
1 console port
Service port
description
8 10/100/1000

Base-T Ethernet port, 1 1000Base-XSFP Gigabit Ethernet port
16

10/100/1000 Base-T Ethernet port, 4 1000Base-X SFP Gigabit Ethernet ports
24 10/100/1000 Base-T Ethernet ports,
4 1000Base-X SFP Gigabit Ethernet ports
48 10/100/1000 Base-T Ethernet ports,
4 1000Base-X SFP Gigabit Ethernet ports
Exchange capacity
(full duplex)
256Gbps
Packet forwarding
rate (machine)
15.75Mpps
39Mpps
51Mpps
87Mpps
Port aggregation
Support LACP link aggregation
port
Support IEEE 802.3x flow control (full duplex)
Supports storm suppression based on port rate percentage
Supports storm suppression based on port rate percentage, pps and bps
VLAN
Support for port-based VLANs (4K)
DHCP
Support DHCP Server
Support DHCP Relay
Support DHCP Client
Support DHCP Snooping
Support DHCP Snooping Option82
IRF2
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation
Support for stacking via standard Ethernet interfaces
Support local stacking and remote stacking
IP routing
Supports IPv4 and IPv6 Layer 3 routing
Support RIP
Multicast
Support IGMP Snoopingv1/v2/v3, MLD Snooping
Support for multicast VLAN
Spanning tree
Support STP/RSTP/MSTP protocol
ACL
Supports ACLs based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port
number, protocol type, VLAN, etc.
Support for time-based ACLs
Supports sending ACLs based on global, VLAN, and port (group)
Support for hardware-based IPv6 ACLs
QoS
Support IEEE 802.1p/DSCP priority
Support priority mapping
Support port trust mode
Support port queue scheduling (SP/WRR/SP+WRR)
Mirror
Support port mirroring, support remote mirroring
Safety features
Support user hierarchical management and password protection
Support Radius certification
Support for SSH 2.0
Support 802.1X, centralized MAC address authentication
Support Guest VLAN
Support port isolation
Support port security
Support MAC address learning limit
Support IP source address protection
Support ARP intrusion detection
Support IP+MAC+ port binding
Support EAD
Support for Triple authentication
Management and
maintenance
Support XModem/FTP/TFTP load upgrade
Supports command line interface (CLI), Telnet, and console port configuration.
Support SNMP, WEB network management
Support RMON (Remote Monitoring)
Support iMC Intelligent Management Center
Support system log, hierarchical alarm, debugging information output
Support HGMPv2
Support Modem remote dialing
Support NTP
Support Ping, Tracert
Support Telnet remote maintenance
Support VCT (Virtual Cable Test) cable detection function
Support loopback-detection port loopback detection
Input voltage
Rated voltage range: 100V ~ 240V AC; 50/60Hz
Maximum voltage range: 90V ~ 264V AC; 47/63Hz
Power consumption
(at full load)
14.4W
25.1W
31.5W
59.8W
PoE+ output power
NA
65W
Working temperature
0℃~45℃
Working environment relative humidity
(non-condensing)
10%~90%
