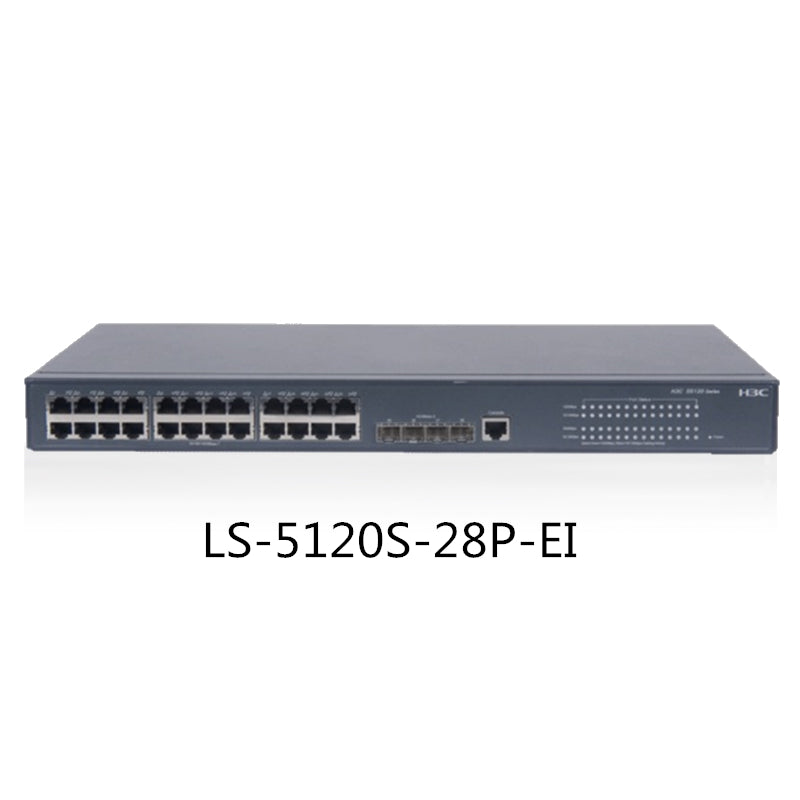

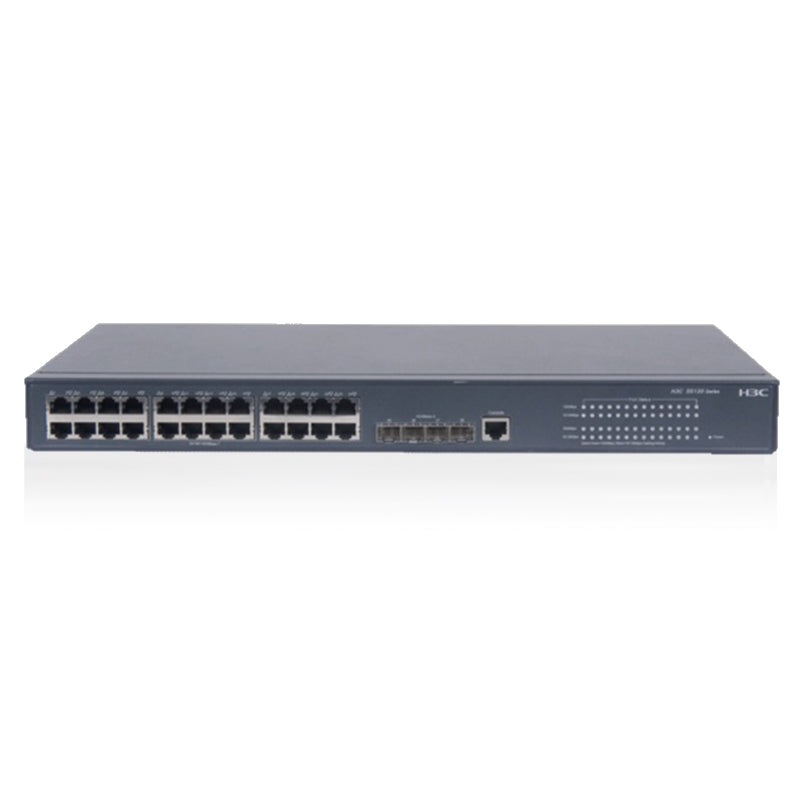

LS-S5120S-28P-EI H3C 24-port IVP6 intelligent flexible switch full Gigabit Layer 2 Ethernet switch

Save 9%
$1,000.00
$910.00
SKU LS-S5120S-28P-EI

Quick Details:

Products Status:Stock

Ports:24

Transmission Rate:10/100/1000Mbps

Function:QoS

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:256Gbps

Brand Name:H3C

Model Number:LS-S5120S-28P-EI

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*160*43.6

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

Support features
S5120S-28P-EI
S5120S-52P-EI
Machine switching capacity
256Gbps
Packet forwarding rate
66Mpps
102Mpps
Dimensions (length × width × height)
(Unit: mm)
440×160×43.6
440×260×43.6
weight
<3kg
<5kg
Management port
1 console port

Fixed port
24 10/100/1000 Base-T Ethernet ports, 4 1000Base-X SFP Gigabit Ethernet ports
48 10/100/1000 Base-T Ethernet ports, 4 1000Base-X SFP Gigabit Ethernet ports
Port aggregation
Support LACP
Port characteristics
Support IEEE802.3x flow control (full duplex)
Supports storm suppression based on port rate percentage
Supports percentage-based, PPS-based storm suppression
IRF2
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation
Support for stacking via standard Ethernet interfaces
Support local stacking and remote stacking
VLAN
Support for port-based VLAN (4K)
Support for MAC-based VLANs
Protocol-based VLAN
Support QinQ, flexible QinQ
Support for Voice VLAN
Support Guest VLAN
Support GVRP
ACL
Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing flow classification based on source MAC address,
destination MAC address, source IP address, destination IP address, TCP/UDP port, protocol type, VLAN
Support Time Range ACL
Supports port-based and VLAN-based ACLs.
QoS
Limits the rate at which packets are received on the port and the rate at which packets are sent.
Support packet redirection
Support port queue scheduling (SP, WRR, SP+WRR)
Supports 802.1p and DSCP priority re-marking of packets
DHCP
Support DHCP Client
Support DHCP Snooping
Support DHCP Snooping option82
Support DHCP auto-config (zero configuration)
IP routing
IPv4/v6 static route, RIP, RIPng
Multicast
Support IGMP Snooping / MLD Snooping
Support for multicast VLAN
Layer 2 ring network protocol
Support STP/RSTP/MSTP/PVST+
Support Smart Link
OAM
Support 802.1ag
Support 802.3ah
Mirror
Support port mirroring
Support for remote port mirroring RSPAN
Safety features
Support user hierarchical management and password protection
Support 802.1X authentication/centralized MAC address authentication
Support for Triple authentication
Support Guest VLAN
Support RADIUS authentication
Support for SSH 2.0
Support port isolation
Support port security
Support MAC address learning limit
Support IP source address protection
Support ARP intrusion detection
Support IP+MAC+ port multi-group binding
Support EAD
Management and maintenance
Support XModem/FTP/TFTP load upgrade
Supports command line interface (CLI), Telnet, and console port configuration.
Support SNMPv1/v2/v3, WEB network management
Support RMON alarms, events, and history
Support iMC Intelligent Management Center
Support system log, hierarchical alarm, debugging information output
Support HGMPv2
Support NTP
Support Ping, Tracert
Support VCT cable detection function
Support DLDP unidirectional link detection protocol
Support loopback-detection port loopback detection
AC input voltage
Rated voltage range: 100V ~ 240V AC, 50/60Hz
Maximum voltage range: 90V ~ 264V AC, 47/63Hz
Power (full load)
31.5W
59.8W
Working temperature
0℃~45℃
Working environment relative humidity (non-condensing)
10%~90%

Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.

Company Profie:

TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...

Our Certificates:

FAQ:

Q1:What's your main product?

TFC mainly produce networking equipment, server , storage equipment etc.

Q2:What's your payment term?
Usually L/C,T/T,D/P,D/A ,it is determined by our negotiation.

Q3:Can you customize product?
Yes, TFC can supply you products according to your requirement .

Q4:What is the MOQ and Leading?
Usually 30~50 working days for delivery.
