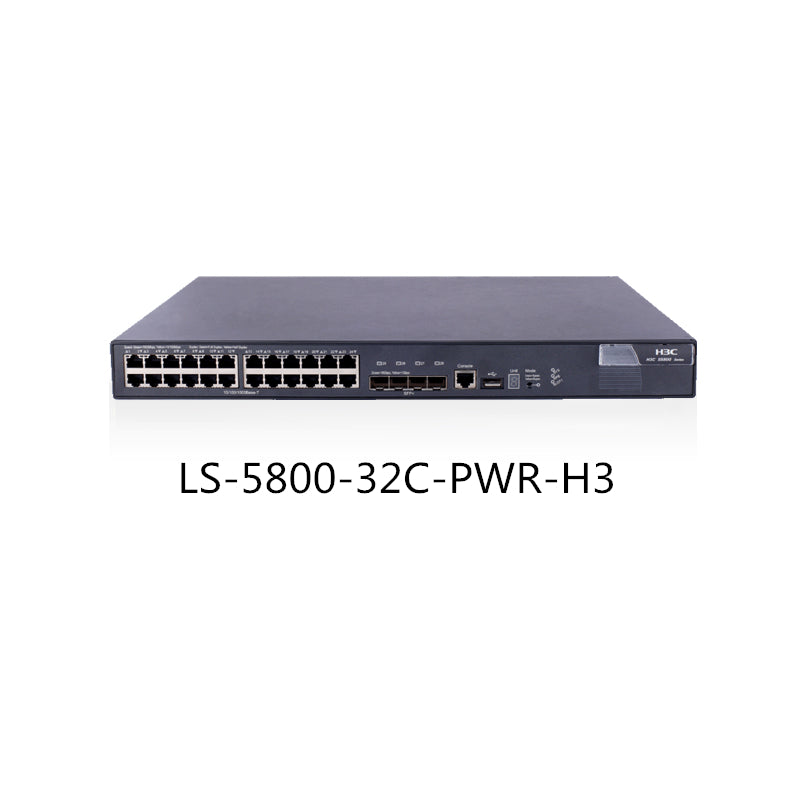

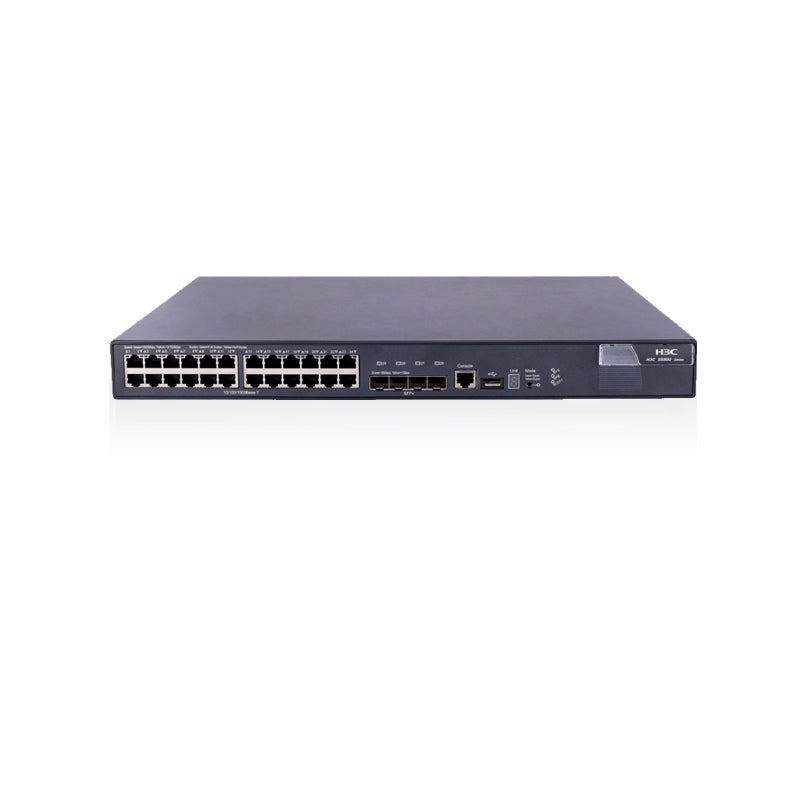

LS-S5800-32C-PWR-H3 Ethernet Switch H3C 4-port 10 Gigabit 24-port Gigabit POE Core Switch

Save 11%
$4,500.00
$4,000.00
SKU LS-5800-32C-PWR-H3

Quick Details:

Products Status:Stock

Ports:24

Transmission Rate:10/100/1000Mbps

Function:QoS

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:3.6Tbps

Brand Name:H3C

Model Number:LS-5800-32C-PWR-H3

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*427*43.6

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

project
S5800-60C-PWR
S5800-56C
S5800-56C-PWR
Chassis size (length × width × height)
(Unit: mm)
440×465×86.1
440×367×43.6
440×427×43.6
weight
≤18kg
≤6.5kg
≤8.5kg
Management port
1 console port
USB interface
1个
Fixed service
port
48 10/100/1000Base-T Ethernet ports (PoE),
4 100/1000M SFP ports
48 10/100/1000Base-T Ethernet ports,
4 1/10G SFP+ ports
48 10/100/1000Base-T Ethernet ports (PoE),
4 1/10G SFP+ ports
Number of slots
in the service
3
1
1
Business
card type
4-port 1G/10G SFP+ interface module
2-port 1G/10G SFP+ interface module
16-port 10/100/1000MBase-T electrical port module
16-port 100/1000M SFP port module
Firewall module
IPS module
Wireless control service board (small specification)
Wireless control service board (large specification)
Input voltage
AC: rated voltage range: 100V ~ 240V AC, 50/60Hz
Maximum voltage range: 90V ~ 264V AC, 47/63Hz
Rated voltage range:

300W DC: -48V to -60V DC

750W DC:
-54V~-57V DC
Rated voltage range(RPS):

10.8V~13.2V DC
Rated voltage range(RPS):

-52V~-55V DC
Power consumption
(no load)
DC:94W
AC:96W
102W
DC:107W
AC:131W
Power consumption
(full load)
Single DC: 1840W (1500W is PoE output)
Dual DC: 1840W (1500W is PoE output)
Single AC: 714W (of which 425W is PoE output)
Dual AC: 1147W (of which 740W is PoE output)
163W
DC: 973W (where 740W is PoE output)

AC: 673W (370W is PoE output)
Working temperature
0℃~45℃
Working environment
For humidity (non-condensing)
10%~90%
Exchange capacity
3.6Tbps
Packet forwarding rate
213Mpps
192Mpps
192Mpps
project
S5800-32C
S5800-32C-PWR
S5800-54S
S5800-32F
Chassis size (length × width × height)
(Unit: mm)
440×367×43.6
440×427×43.6

440×660×43.6
440×427×43.6
weight
≤6.0kg
≤8kg
≤12.2Kg
≤8.5kg
Management port
1 console port
1 console port 1 outlet port outlet
USB interface
1个
Fixed service
port
24 10/100/1000Base-T Ethernet ports,
4 1/10G SFP+ ports
24 10/100/1000Base-T Ethernet ports (PoE),
4 1/10G SFP+ ports
48 10/100/1000Base-T Ethernet ports,
6 1/10G SFP+ ports
24 100/1000M SFP ports,
4 1/10G SFP+ ports
Number of slots
in the service
1
1
0
1
Business
card type
4-port 1G/10G SFP+ interface module
2-port 1G/10G SFP+ interface module
16-port 10/100/1000MBase-T electrical port module
16-port 100/1000M SFP port module
Firewall module
IPS module
Wireless control service board (small specification)
Wireless control service board (large specification)
Input voltage
AC: rated voltage range: 100V ~ 240V AC, 50/60Hz
Maximum voltage range: 90V ~ 264V AC, 47/63Hz
Rated voltage range (RPS):

10.8V to 13.2V DC
Rated voltage range (RPS):

-52V~-55V DC
Rated voltage range: -40V ~ -60V DC

Maximum voltage range: -40V to -72V DC
Rated voltage range:

-48V to -60V DC
Power consumption
(no load)
67W
DC:64W
AC:85W
105W
DC:58W
AC:67W
Power consumption
(full load)
105W
DC: 870W (of which 740W is PoE output)

AC: 598W (370W is PoE output)
130W
DC:136W

AC:146W
Working temperature
0℃~45℃
Working environment
For humidity (non-condensing)
10%~90%
Exchange capacity
3.6Tbps
Packet forwarding rate
156Mpps
156Mpps
162Mpps
156Mpps
Support features
S5800 series
S5820X series
Forwarding mode
Store-forward mode
Store-forward mode, cut through mode
Link aggregation
Supports GE port and 10GE port aggregation.
Support static aggregation, dynamic aggregation
flow control
Support IEEE802.3x flow control, support back pressure
Jumbo Frame
support
MAC address table
Support black hole MAC address
Supports setting the maximum number of port MAC addresses.
VLAN
Supports VLANs based on ports, protocols, MACs, and IP subnets (4094)
Support QinQ and flexible QinQ
Support for Voice VLAN
VLAN Mapping
Support 1:1 VLAN Mapping
Support N:1 VLAN Mapping
Support 2:2 VLAN Mapping
DHCP
Support DHCP Client
Support DHCP Snooping
Support DHCP Relay
Support DHCP Server
Support DHCPv6
IRF2 intelligent flexible architecture
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation, distributed elastic routing
Support for stacking via standard 10 Gigabit Ethernet interfaces
Support local stacking and remote stacking
IPv4 routing
Support static routing, RIP, OSPFv2, BGP, ISIS
Support equal cost routing, routing policy, VRRP, policy routing
IPv6 routing
Support static routing, RIPng, OSPFv3, BGP4+ for IPV6, ISISv6
Support equal cost routing, routing policy, VRRP, policy routing
URPF
Support reverse route check
BFD
OSPF,BGP,IS-IS,Static Route,RSVP-TE,VRRP
Tunnel
Supports IPv6 manual tunnels, 6to4 tunnels, ISATAP tunnels, IPv4 over IPv4 tunnels, IPv4 over IPv6 tunnels, IPv6 over IPv6
tunnels, GRE tunnels
IPv4 multicast
Support IGMP Snooping v2/v3
Support IGMP v1/v2/v3
Support PIM-DM/SM/SSM
Support MSDP, MBGP
Support multicast VLAN, multicast VLAN+
Support for multicast policies
IPv6 multicast
Support MLD Snooping v1/v2
Support MLD v1/v2
Support PIM-DM/SM/SSM for IPV6
Support MBGP for IPv6
Support IPv6 multicast VLAN, IPv6 multicast VLAN+
MPLS VPN (S5800 series)
Support MPLS
Support VPLS
Support MCE
Broadcast/multicast/unicast storm suppression
Supports storm suppression based on port rate percentage
Support PPS-based storm suppression
Support kbps-based storm suppression
MSTP
Support STP/RSTP/MSTP protocol
Support STP Root Guard, BPDU Guard
RRPP
Support RRPP protocol and RRPP multi-instance
Smart link and Monitor link
Support Smart Link and Smart Link multi-instance
Support for Monitor link
QoS/ACL
Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing source MAC address, destination MAC address, source IP
(IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, VLAN Flow classification
Packet filtering with time range support
Support for large capacity bidirectional ACLs
Limits the rate at which packets are received on the port and the rate at which packets are sent.
Support packet redirection
8 output queues per port
Support flexible queue scheduling algorithm, which can be set based on ports and queues at the same time, supporting SP, WDRR,
WFQ, SP+WDRR four modes
Supports 802.1p and DSCP priority re-marking of packets
Support WRED congestion avoidance mechanism
Mirror
Support N:1 port mirroring and flow mirroring
Support multiple mirrored viewing ports
Support port remote mirroring (RSPAN)
Support for remote mirroring of enhanced ports (ERSPAN)
Safety features
Support user hierarchical management and password protection
Support AAA authentication and RADIUS authentication
Supports MAC address authentication, 802.1x authentication, and portal authentication.
Support HWTACACS
Support for SSH 2.0
Support IP+MAC+ port binding
Support for IP Source Guard
Support for HTTPs, SSL
Support PKI (Public Key Infrastructure)
Support EAD
ARP detection can be performed based on DHCP snooping security entries, 802.1x entries, or IP/MAC static binding entries.
DHCP snooping support to prevent fraudulent DHCP servers
Support BPDU guard, Root guard
Supports plain text and MD5 cipher text authentication for OSPF and RIPv2 packets.
OAA
Firewall card
IPS card
Wireless control service board
Traffic management
Support IPFIX (only supported by S5800 series)
Support sFlow
Loading and upgrading
Support XModem protocol, FTP, TFTP to implement load upgrade
management
Supports the configuration of the command line interface (CLI), Telnet, and console port.
Support SNMPv1/v2/v3
Support RMON (Remote Monitoring) alarms, events, history
Support iMC network management system and support WEB network management
Support system logs and hierarchical alarms
Support cluster management HGMPv2
Support power alarm function
Support fan and temperature alarm
Support NTP
maintain
Support Ping, Tracert, NQA, Track
Support Virtual Cable Test, DLDP
Support 802.1ag, support 802.3ah
Support USB for file upload and download

Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.

Company Profie:

TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...

Our Certificates:

FAQ:

Q1:What's your main product?

TFC mainly produce networking equipment, server , storage equipment etc.

Q2:What's your payment term?
Usually L/C,T/T,D/P,D/A ,it is determined by our negotiation.

Q3:Can you customize product?
Yes, TFC can supply you products according to your requirement .

Q4:What is the MOQ and Leading?
Usually 30~50 working days for delivery.
