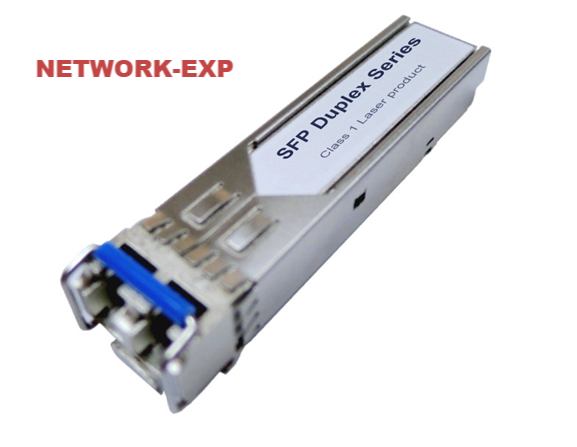

SFP-LX 1.25G SFP-1000LX Transceiver Hot Pluggable, Duplex LC, 1310nm FP, Single Mode, 10KM, DDM

Features:

• Compliant with IEEE802.3z Gigabit Ethernet Standard
• Compliant with SFF8472 diagnostic monitoring interface
• Compliant with SFP MSA
• Hot Pluggable
• 1310nm FP laser transmitter.
• Duplex LC connector
• 2-wire interface for management and diagnostic monitor
• Single +3.3V power supply voltage
• Transmission distance of 10km over SM fiber
• RoHS Compliant

 [qiege]

Overview:

 AS-SFP-C7-S13-10D Small Form Factor Pluggable SFP transceivers are compliant with the current SFP Multi-Source Agreement ( MSA ) Specification. The high performance uncooled 1310nm FP transmitter and high sensitivity PIN receiver provide superior performance for SONET/SDH and Ethernet applications up to 10km optical links.

Applications:

• 1000Base-LX Ethernet
• 1x Fiber Channel
• High speed I/O for file server
• Mass storage system I/O
• Bus extension application
